Installing Trim Panel On Steering Column Switch

  1. Install trim panel on steering column switch.
    1. 1.1. Install upper trim panel on steering column switch.
      1. 1.1.1. Insert upper trim panel and connect electric plug connections.
      2. 1.1.2. Press on and lock upper trim panel.
    2. 1.2. Install lower trim panel on steering column switch.

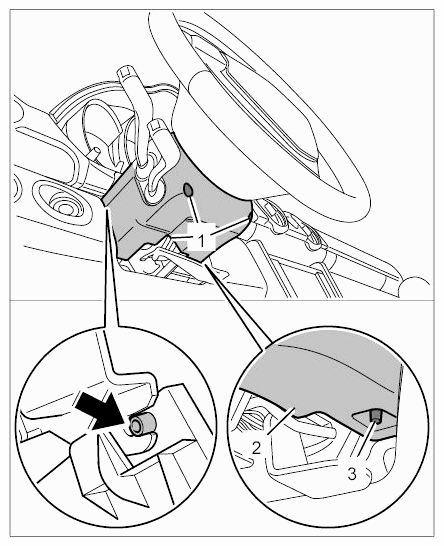

      Fig 1: Locating Lower Trim Panel On Steering Column Switch
      G09587977Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. 1.2.1. Engage lower trim panel -2-  on upper trim panel.
      2. 1.2.2. Clip in retaining clip -3-  on lower trim panel -2-  .
      3. 1.2.3. Screw in screws -1-  .
  2. Move steering wheel back to its original position.
