Installing Cover

  1. Check condition of Velcro strip -1-  on the body and on the cover; replace if necessary.

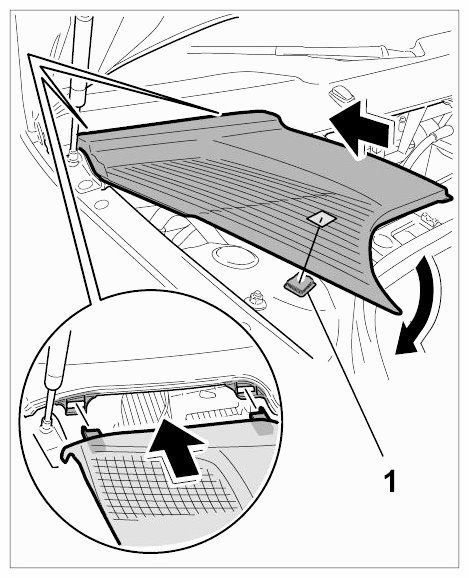

    Fig 1: Installing Cover To Cowl Panel Cover
    G09592767Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Engage cover in cowl panel cover, lift rubber lip of luggage compartment seal to one side and press the cover onto the Velcro strip -1-  .
