Removing Vacuum Pump

1. 1.1. Release plug-in coupling -1-  at the vacuum line and pull it off the vacuum pipe.
2. 1.2. Remove vacuum line and electric line from the clip holder -2-  .

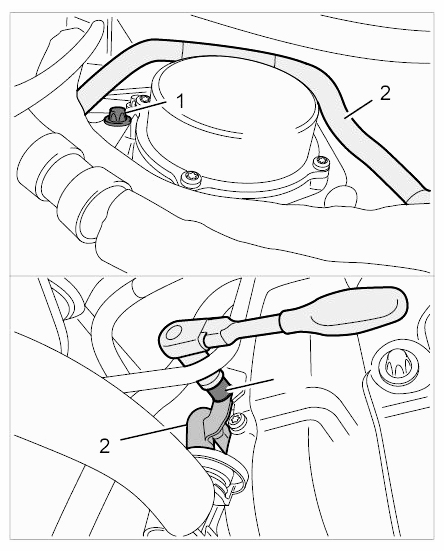

Fig 1: Identifying Vacuum Line And Electric Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosen and unscrew M6 x 12 screws -1-  and pull the vacuum pipe -2-  off the vacuum pump.

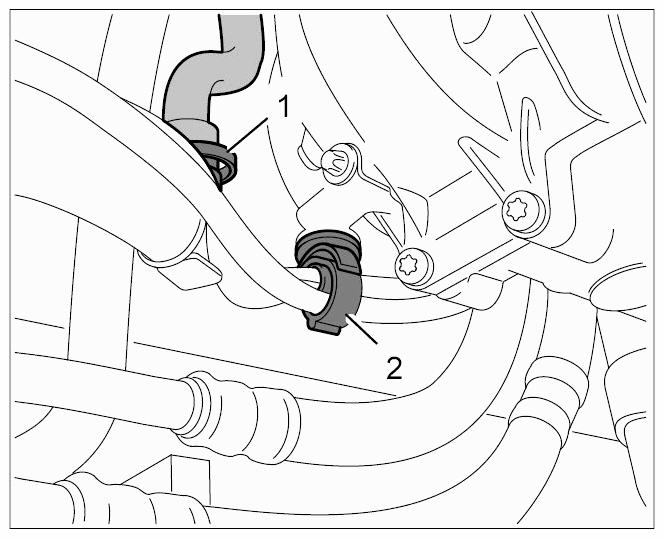

Fig 2: Identifying Vacuum Line And Electric Line From Clip Holder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When you loosen the fastening screws, engine oil will run out of the vacuum pump. Place a suitable container underneath to collect the emerging engine oil. The engine-oil level must be checked and topped up afterwards (following installation).

Unscrew M6 x 20 external Torx screws -4-  and remove the vacuum pump.

Make sure not to loosen the internal Torx screws.

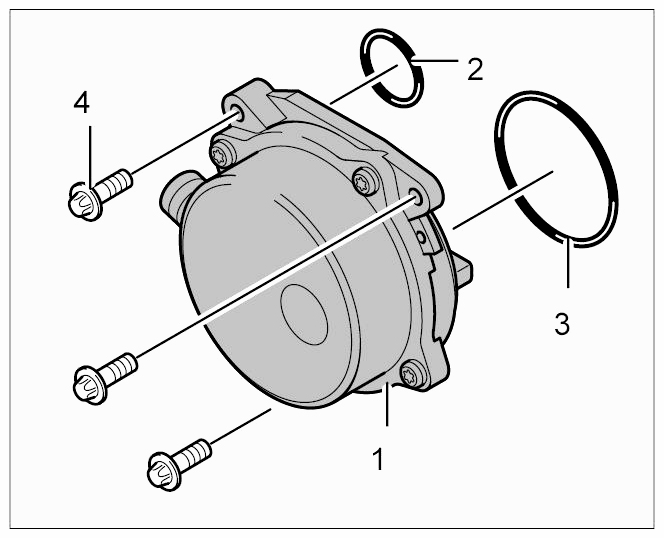

Fig 3: Identifying Vacuum Pump With Screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
