Home >> Porsche >> 2012 >> Boxster Base, Automatic DCT Trans >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> 47 - Brakes - Hydraulic Brake System, Regulator -- 987-BOXSTER-CAYMAN >> WM 477619 Removing And Installing Vacuum Pump (Except CAYMAN, CAYMAN Black Edition, CAYMAN S Black Edition, BOXSTER Black Edition, BOXSTER S Black Edition, CAYMAN R) >> Subsequent Work

Subsequent Work

  1. Start the engine to allow it to warm up and carry out leak test.
  2. Check engine-oil level and top up engine oil if necessary. → 170101 CHECKING ENGINE-OIL LEVEL
  3. Install rear underbody cover → INSTALLING COVER FOR REAR UNDERBODY .

    Replace fastening nuts -2-.

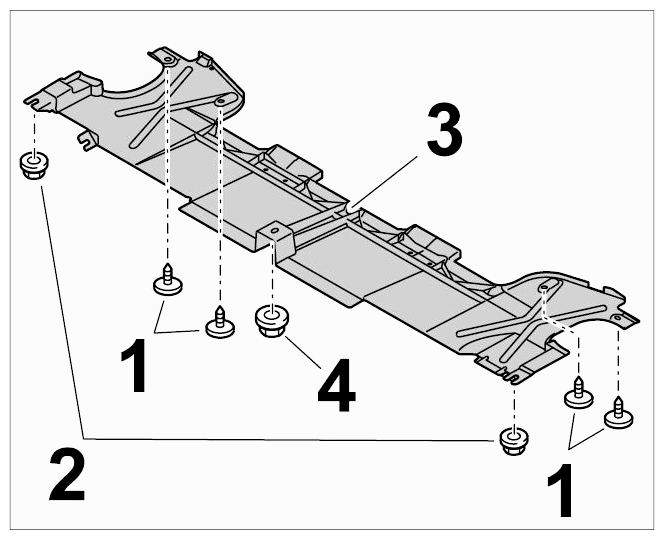

    Fig 1: Identifying Rear Underbody Cover Components
    G09587948Courtesy of PORSCHE CARS NORTH AMERICA, INC.
