Preliminary Work

  1. Remove rear underbody cover.

    Replace fastening nuts -2- following removal.

    → REMOVING COVER FOR REAR UNDERBODY

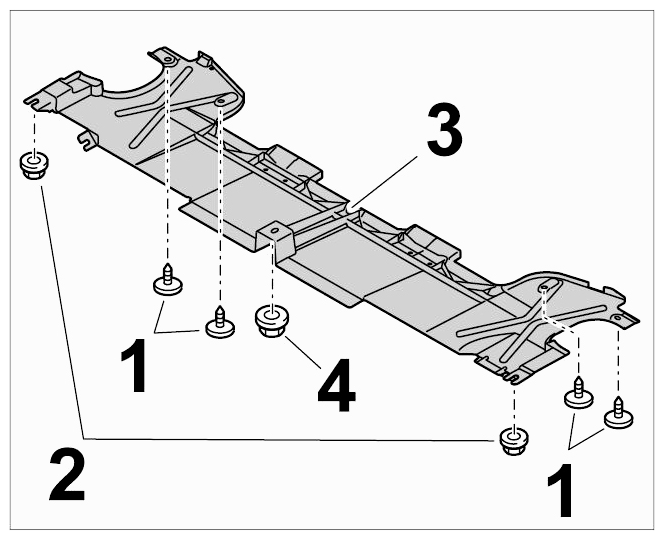

Fig 1: Identifying Rear Underbody Cover Components
G09587944Courtesy of PORSCHE CARS NORTH AMERICA, INC.
