Installing Front Brake Calliper (Standard Brake System And PCCB)

  1. Fit brake calliper on the wheel carrier. Use new fastening screws -2-  . Tightening torque: 85 Nm (63 ftlb.).

    Fit the brake line -1-  on the brake calliper.

    Tightening torque for brake line -1-  = 16 Nm (12 ftlb.).

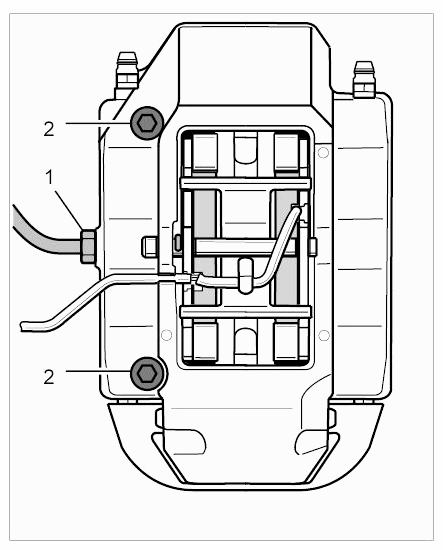

    Fig 1: Identifying Brake Line/Brake Calliper Fastening Screws
    G09587910Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Route brake pad wear indicator wire and connect the connector to the combination plug connection. Lock combination plug connection.
  3. Bleed the brake system and adjust the brake fluid level → 470107 BLEEDING THE BRAKE SYSTEM .
