Removing Brake Master Cylinder
- Suck brake fluid out of the reservoir or pump out the brake fluid using the brake pedal via a front and rear brake calliper. Use a collecting bottle.

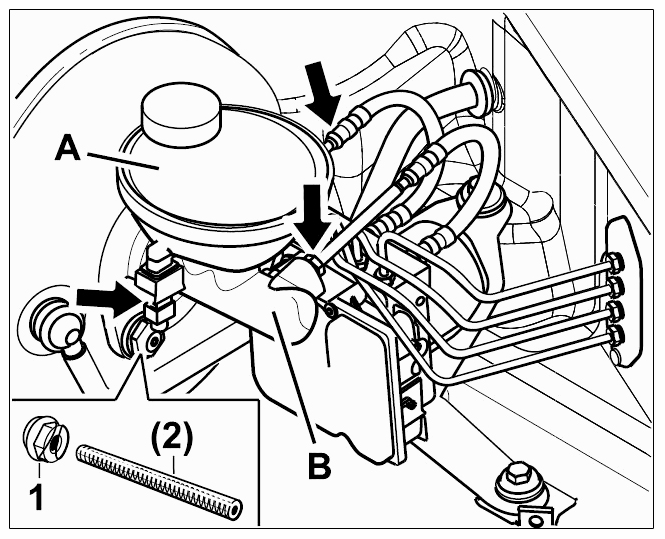

- Pull electric line -Arrow-
off the reservoir -A-
. Undo the brake lines -Arrows-
on the brake master cylinder -B-
. Close the brake lines and connections with suitable plugs.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

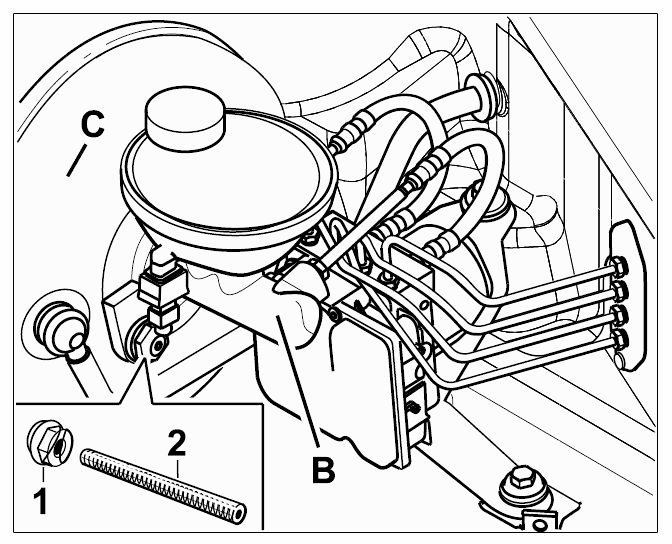

- Undo the fastening nuts -1-
on the brake master cylinder. Pull out brake master cylinder -B-
.
- Brake master cylinder mount
- Brake booster mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
