Preliminary Work

  1. Remove cover over the brake master cylinder (front luggage compartment cover) → REMOVING FRONT LUGGAGE COMPARTMENT COVER .

    There are two types of luggage compartment covers -1-  (illustrations below).

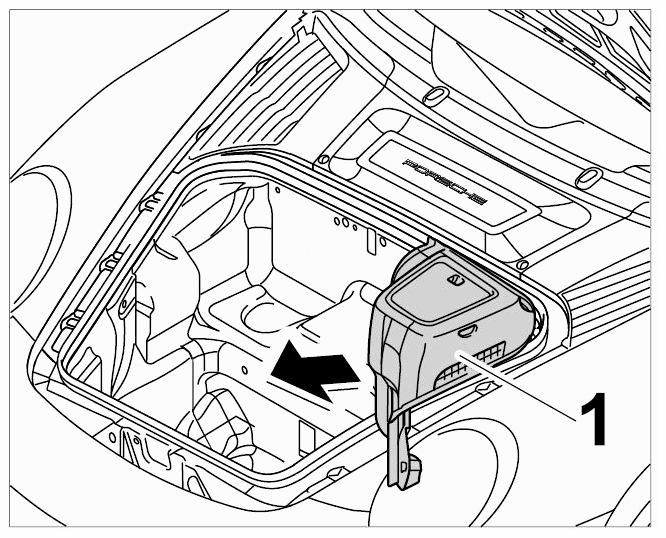

    Fig 1: Removing Luggage Compartment Cover (1 Of 2)
    G09587899Courtesy of PORSCHE CARS NORTH AMERICA, INC.

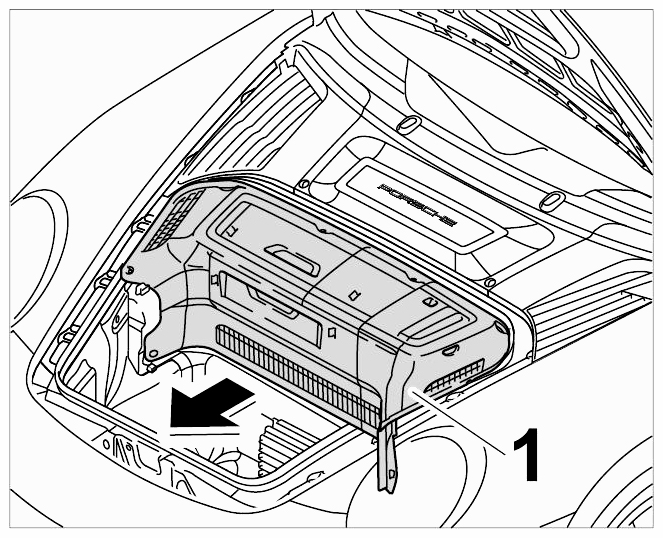

    Fig 2: Removing Luggage Compartment Cover (2 Of 2)
    G09587900Courtesy of PORSCHE CARS NORTH AMERICA, INC.
