Installing Brake Master Cylinder
- Install in reverse order. Tighten fastening nuts -1-
on the brake master cylinder to the prescribed tightening torque. → Master Brake Cylinder/Brake Booster
. When fitting the reservoir, make sure it engages correctly.

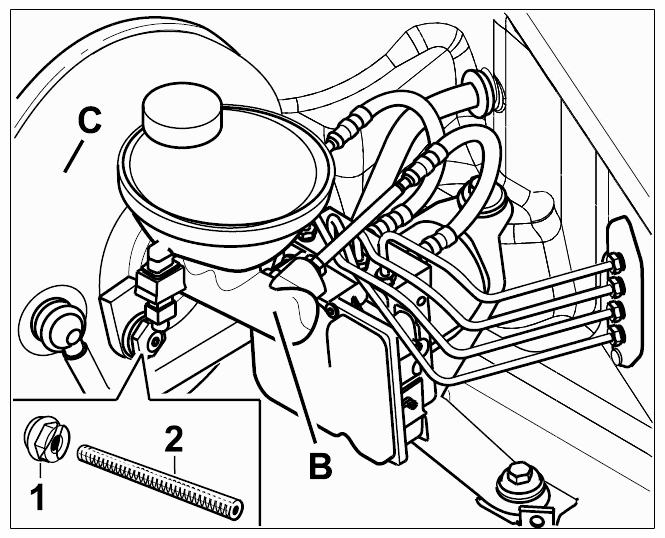

- Brake master cylinder mount
- Brake booster mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Bleed the brake system and adjust the brake-fluid level. → 470107 BLEEDING THE BRAKE SYSTEM .
- Carry out the following tests:
- Check the system for leaks.
- Then start the engine. Brake-related lights in the instrument cluster must go out when the engine is running.
- Carry out a function test on the brakes.
