Disassembling And Assembling Spring Strut

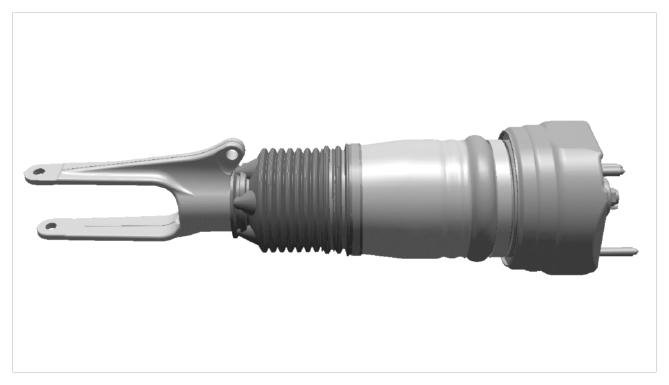

Fig 1: Identifying Air-Spring Strut

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

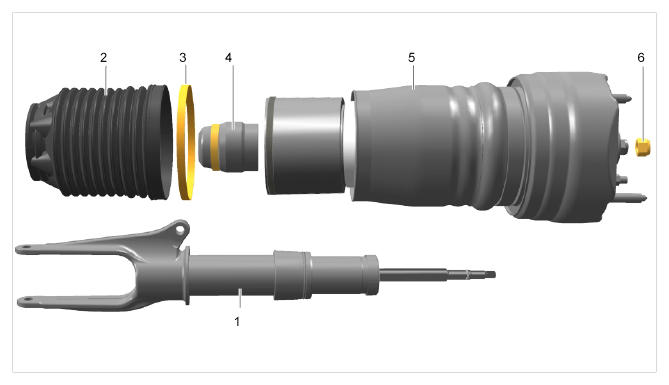

Overview of air-spring strut

Fig 2: Disassembled View Of Air-Spring Strut

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Shock absorber (vibration damper)
2. Boot/bellows
3. Clamp
4. Additional spring
5. Air spring
6. Nut

1. Carefully clamp the air-spring strut on the lower mounting (use aluminum protective jaws).

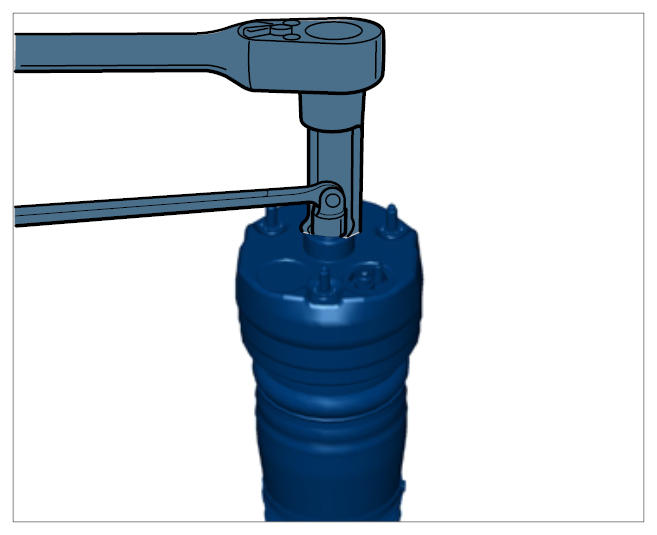

2. Loosen the fastening nut on the vibration damper -6-  using socket-wrench insert 3186 and carefully remove the air spring -5-  . → Removing/fitting spring-strut mount
   Fig 3: Removing Fastening Nut On Vibration Damper

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

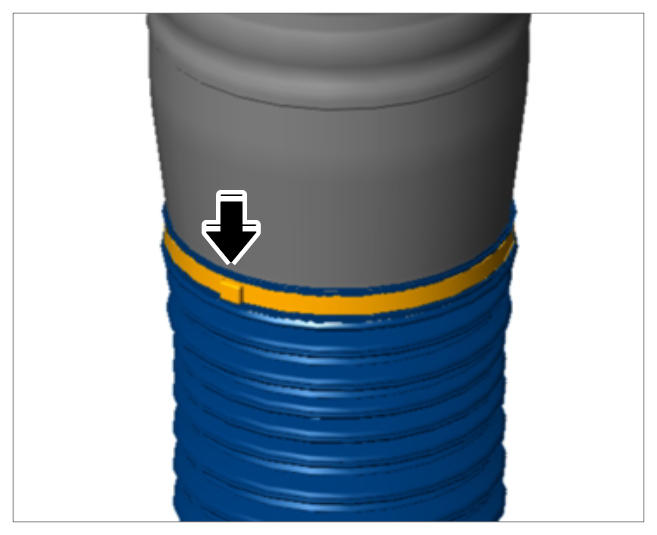

3. Remove clamp. → Clamp on boot/bellows
   Fig 4: Locating Clamp On Boot/Bellows

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

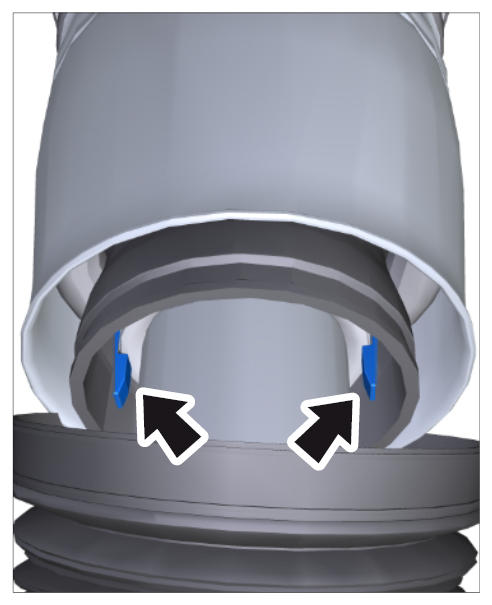

4. Push the boot/bellows down and secure it (2nd mechanic required!). Hold the rolling piston -1-  . Carefully press the two clips outwards -arrows-  .
   Fig 5: Pressing Clips On Air Spring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

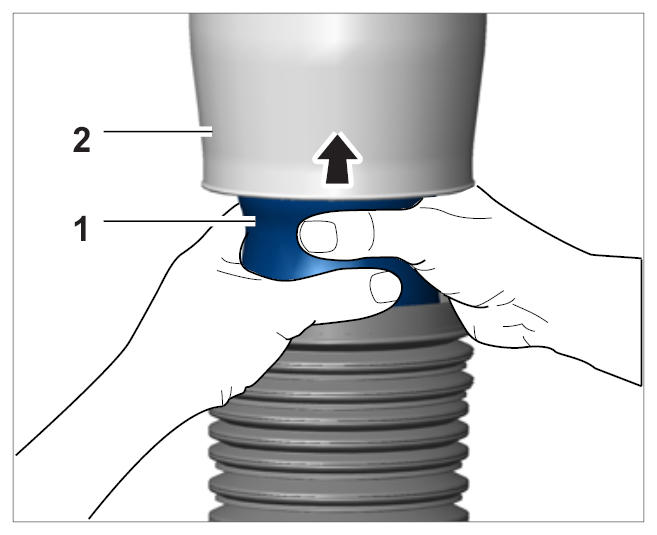

   Carefully remove the rolling piston from the shock absorber (vibration damper) in an upward direction by turning it slightly to the left/right.

   Fig 6: Removing Rolling Piston From Shock Absorbers

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

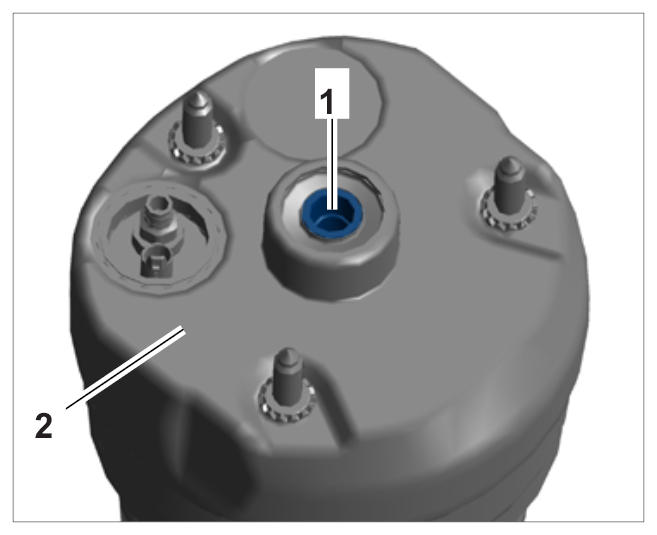

5. When replacing the air spring, slide the additional spring -1-  out of the centering device.
   Fig 7: Identifying Additional Spring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove boot/bellows.

   Information

   If the shock absorber is not replaced, the sealing ring must be replaced.

   • Make sure that everything remains absolutely clean. The smallest impurities can cause leakages.
   • Clean the contact surfaces of the sealing rings with a lint-free cloth.
   • Lightly grease sealing rings with Syntheso Glep 1 (Part No. 000.043.204.68).

   After carefully examining all components, assemble the spring strut in reverse order.

   Supporting mount on piston rod: Tightening torque 55 Nm (41 ftlb.)

   Information

   When replacing the air spring, always replace the boot/bellows.

   After removing gaskets, examine the contact surfaces on housings for burrs and damage.

   Always loosen and tighten screws or nuts crosswise for mounting covers and housings.

   • When sliding in the rolling piston, the convoluted air bellows must lie evenly between the outer guide and rolling piston (roll fold).

   Pull the boot/bellows down fully following assembly and clip them in.
