Installing Control Unit For Distance Measuring Sensor

  1. Position holder together with control unit for distance measuring sensor.
  2. Position holder on the bumper and secure using the two fastening screws -1-  .

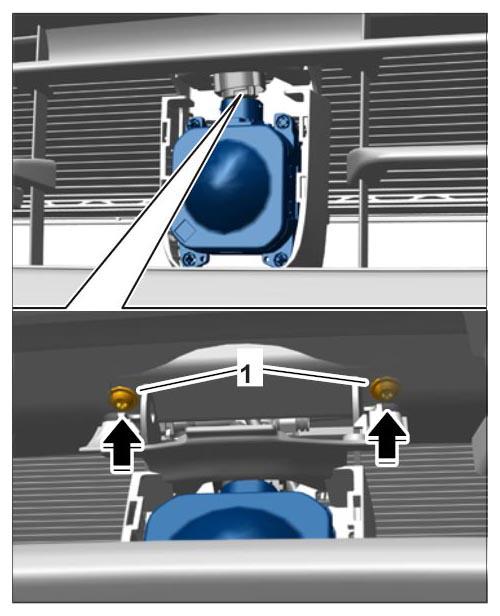

    Fig 1: Securing Holder
    G09806394Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Press in the electric plug until it clicks into place.
  4. Position covers for distance measuring sensor and clip them in.
    Fig 2: Fitting Cover For Distance Measuring Sensor
    G09806395Courtesy of PORSCHE CARS NORTH AMERICA, INC.
