Adjusting Control Unit For Distance Measuring Sensor

  1. A battery charger with a current rating of at least 40 A must be connected to the external power feed points.
  2. Connect PIWIS Tester II 9818  to the vehicle and start it up.
  3. Switch on ignition.
  4. Select the vehicle and adaptive cruise control  control unit and press [>>] to continue.
  5. In the Adaptive cruise control  menu select the Maintenance, repairs  submenu and press [>>] to continue.
  6. Follow the instructions on the Tester and, if necessary, adjust the sensor -1-  using the adjusting tool T-socket wrench for ACC sensor VAS 6190/2 WE 1364  in line with the Tester specifications.

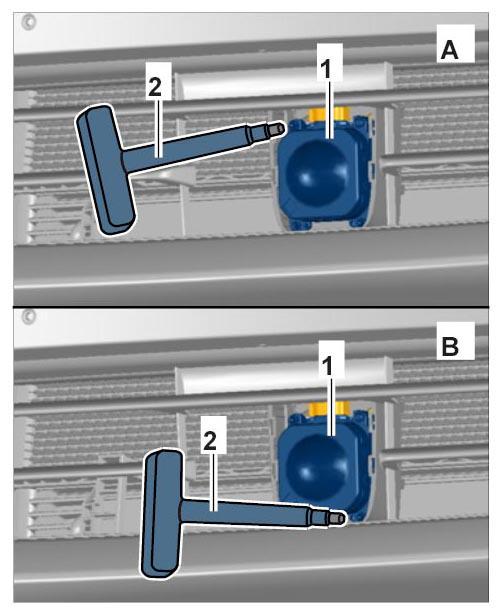

    Fig 1: Adjusting Screws For Distance Measuring Sensor
    G09806388Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. The process must be repeated until the message Adjustment successful  is displayed on the Tester.
