Preparing (Inner) Rear Wheel Housing For Installation

Information

Drill out spotwelds A  through two plate thicknesses.

1. Drill out spotwelds using Spotweld drill   .
   Fig 1: Drilling Out Spotwelds

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Heat up connection areas using a hot-air gun.
   Fig 2: Identifying Heat Up Connection Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Fit and secure (inner) rear wheel housing.

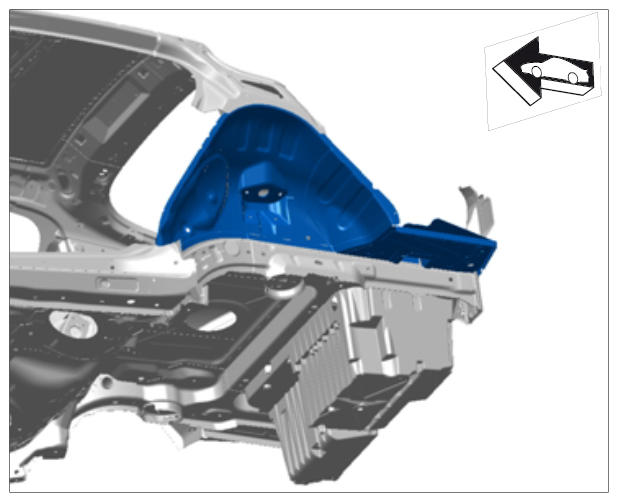

   Fig 3: Fitting (Inner) Rear Wheel Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Drill 9 new holes for rivets using Twist drill nr.201  (diameter: 6.6 mm).

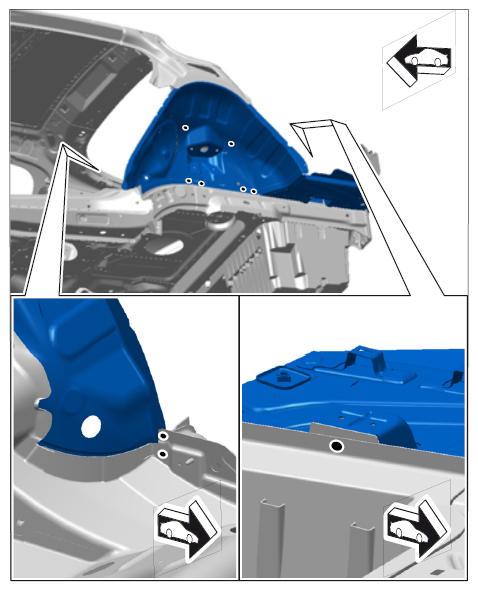

   Fig 4: Drilling Rivet Holes On (Inner) Wheel Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove (inner) rear wheel housing.
6. Prepare connection areas for bonding.
   Fig 5: Preparing Connection Areas For Bonding

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
