Preparing Rear Cross Member For Installation

  1. Fit rear cross member.
    1. 1.1. Fit the rear cross member.

      Information

      Before drilling the rivet holes, check the installation position by fitting the roof.

    2. 1.2. Drill two holes for rivets through the existing holes on the left and right side using a 6.6-mm drill bit twist drill Nr.201  .

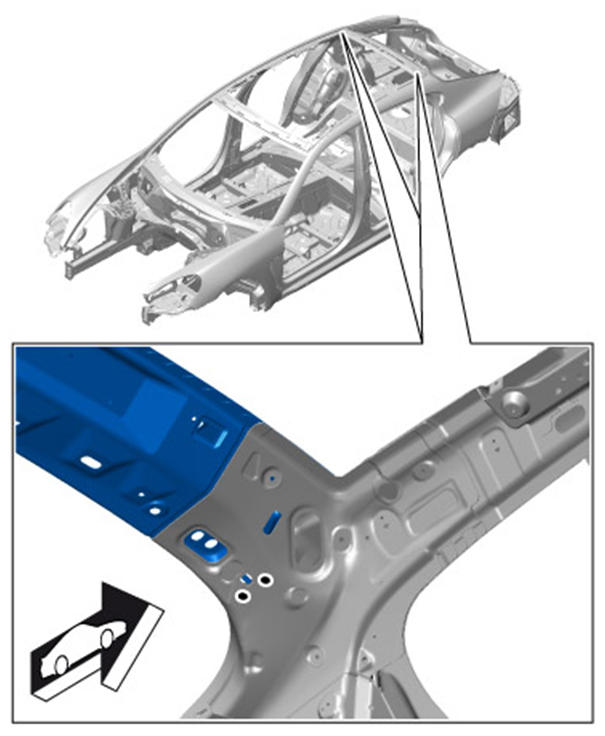

      Fig 1: Preparing Rear Cross Member For Installation (1 Of 2)
      G09809413Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove rear cross member.
  3. Prepare connection areas for bonding.

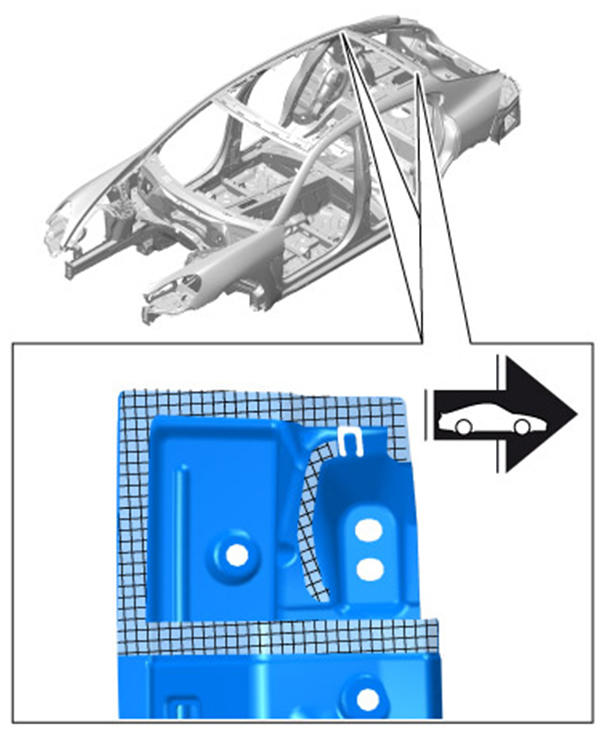

    Fig 2: Preparing Rear Cross Member For Installation (2 Of 2)
    G09809414Courtesy of PORSCHE CARS NORTH AMERICA, INC.
