44 - Wheels, Tires, Suspension Alignment -- PANAMERA (970)
>>
WM 440593 Balancing/Optimizing Wheels (Except PANAMERA GTS, PANAMERA Turbo S, PANAMERA 4 Executive, PANAMERA Platinum Ed., PANAMERA 4 Platinum Ed.)
>>
Balancing/Optimizing Wheels
>>
Balancing Weights
Balancing Weights
Type of balancing weights: Adhesive weights.
Attach both weights to the inner side.

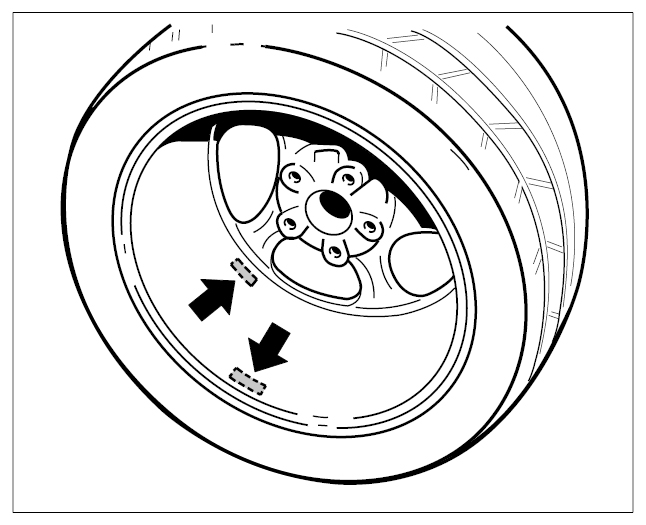

Fig 1: Locating Balancing Weights
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information
Observe program selection and operating instructions of the balancing machine.
