Installing Crankshaft-Flywheel Sealing Ring

WARNING: This page is about a different variant/trim than selected.

Information

Sealing rings become damaged as a result of improper fitting. Do not oil sealing rings on the running surface and do not pull sealing rings off the plastic sleeve.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

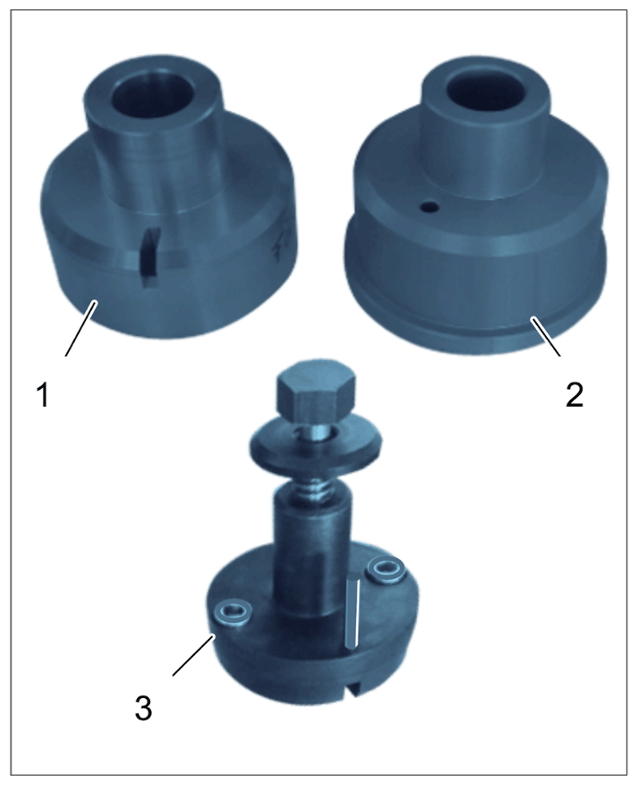

Insertion tool 9837

1	> 9837 - Insertion tool for hall-sender rotor
2	> 9837 - Insertion tool for crankshaft-flywheel sealing ring
3	> 9837 - Insertion tool for centrina device

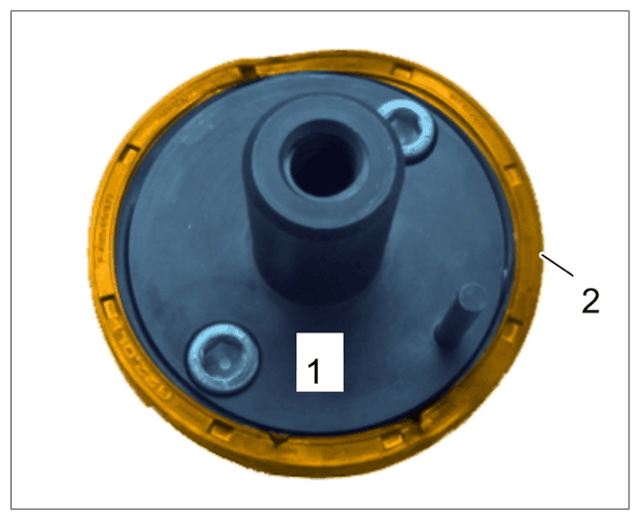

Place sealing ring -2- on the centring device -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Placing sealing ring on centring device

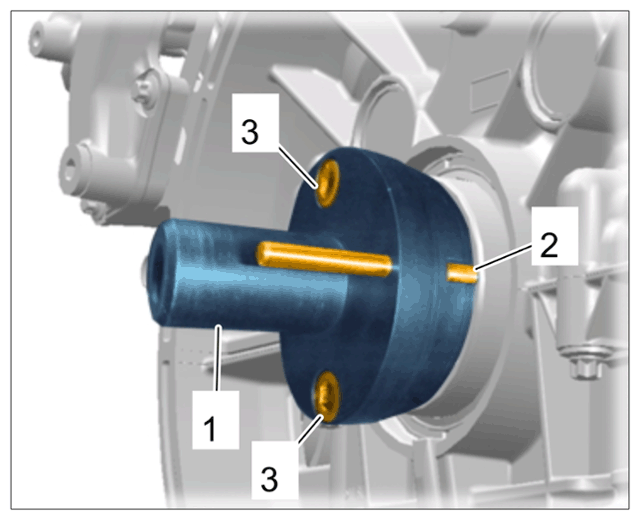

Secure centring device -1- on the crankshaft
Position centring device on the crankshaft flange.

Position centring device -1- using the crankshaft centring pin -2- .

Tighten screws -3- to 23 Nm (17 ftlb).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing centring device to the crankshaft

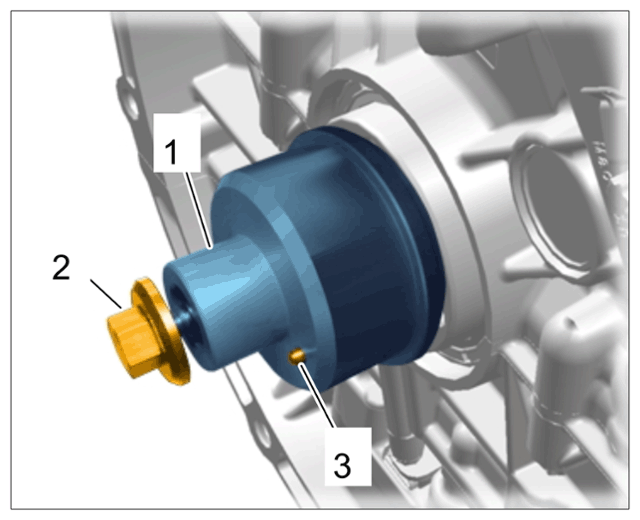

Install crankshaft-flywheel sealing ring
Fit insertion tool for crankshaft-flywheel sealing ring -1- on the centring device.

Guide centring pin -3- on the centring device through the bore in the insertion tool for the crankshaft-flywheel sealing ring -1- .

Tighten screw -2- to 25 N m (19 ftlb.).

Remove insertion tool completely and check press-in depth.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insertion tool for crankshaft-flywheel sealing ring
