Installing B-Pillar Reinforcement

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

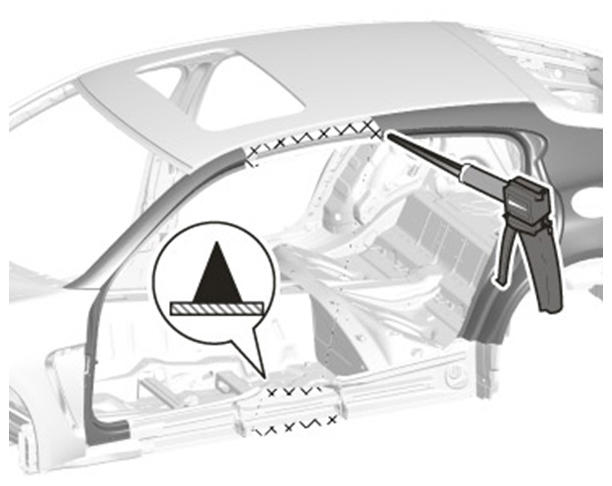

Apply adhesive. → Application depth: 3.0 mm
Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

Fig 1: Applying Body Structural Adhesive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

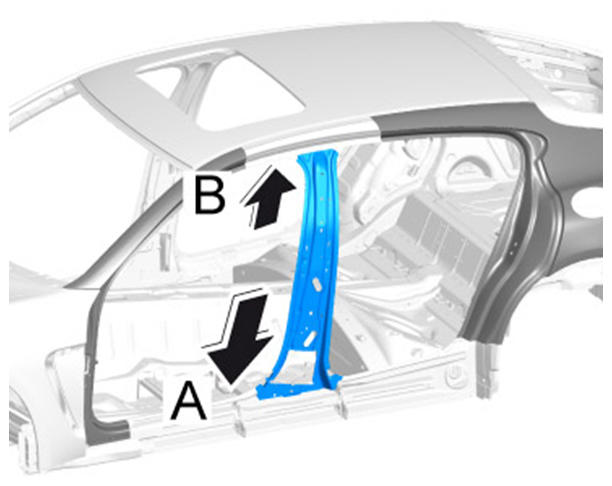

Fit inner B-pillar panel. To do this, insert the inner B-pillar panel at the bottom first, slide it down fully -arrow A- and then slide it up and into position -arrow B- .

Fig 2: Installing B-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

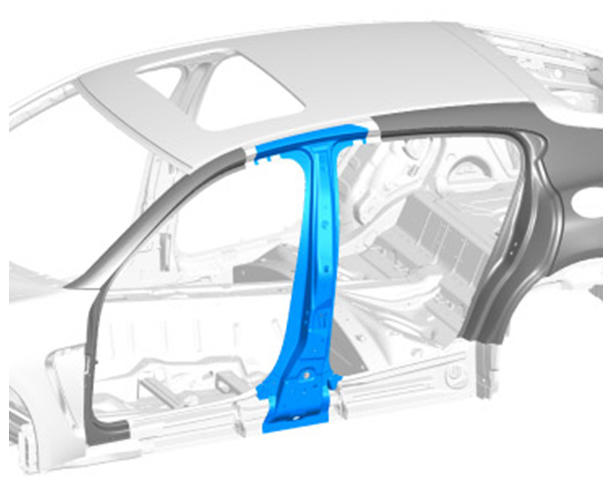

Fit B-pillar reinforcement.

Fig 3: Installing B-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in B-pillar reinforcement.
1. 4.1. Resistance spot-weld the B-pillar reinforcement.

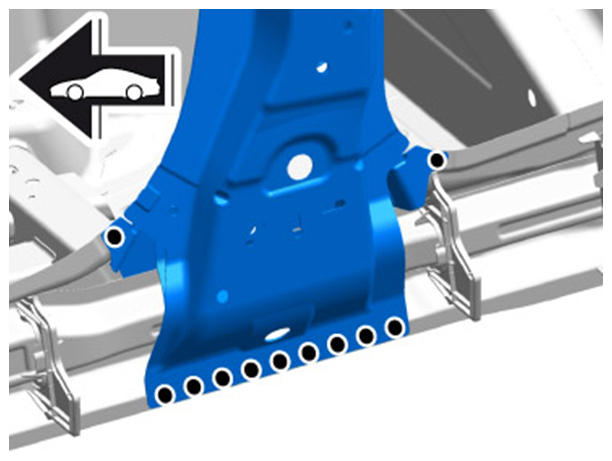

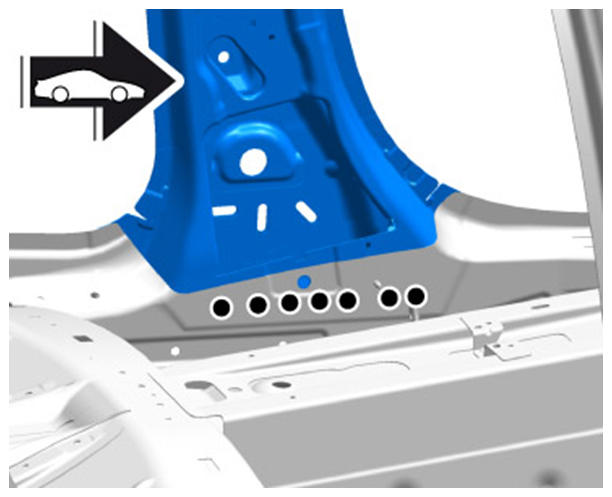

  Fig 4: Spot-Weld B-Pillar Reinforcement (1 Of 3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

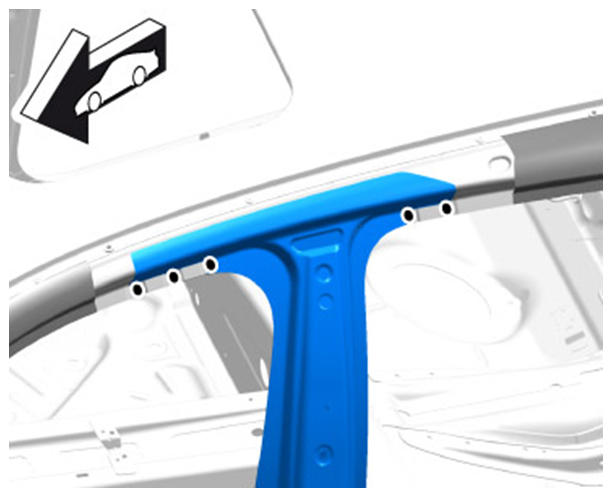

  Fig 5: Spot-Weld B-Pillar Reinforcement (2 Of 3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

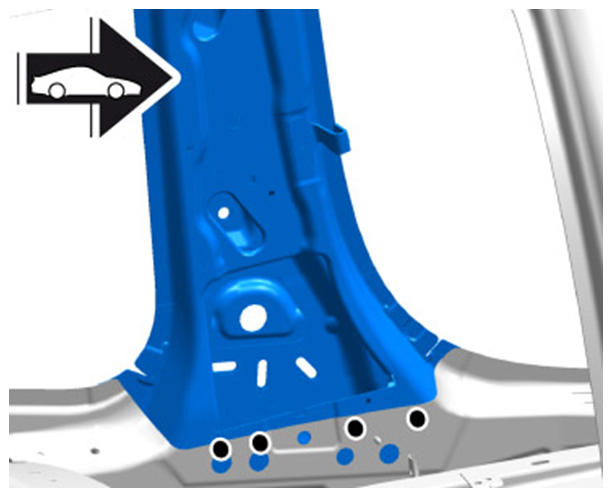

  Fig 6: Spot-Weld B-Pillar Reinforcement (3 Of 3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Plug-weld the B-pillar reinforcement using inert gas.

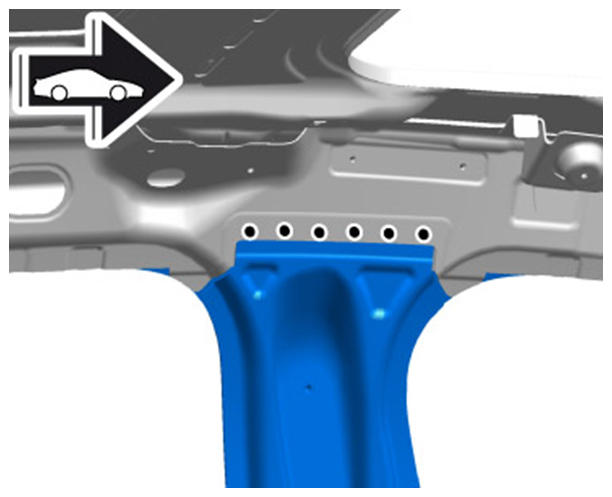

  Fig 7: Plug-Weld B-Pillar Reinforcement (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 8: Plug-Weld B-Pillar Reinforcement (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

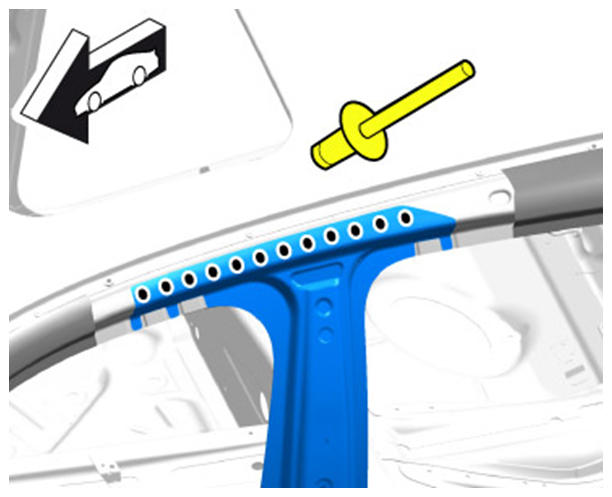

Rivet in B-pillar reinforcement using → BLIND RIVET 000.043.207.57.

Fig 9: Rivet B-Pillar Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Prepare and install center side member. → 514855 REPLACING CENTRE SIDE MEMBER
Prepare and install B-pillar. → 514155 REPLACING B-PILLAR
Prepare and install outer side member. → 514555 REPLACING OUTER SIDE MEMBER
