Removing Rear Part Of C-Pillar Trim Panel

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

1. Fold rear backrest forward.

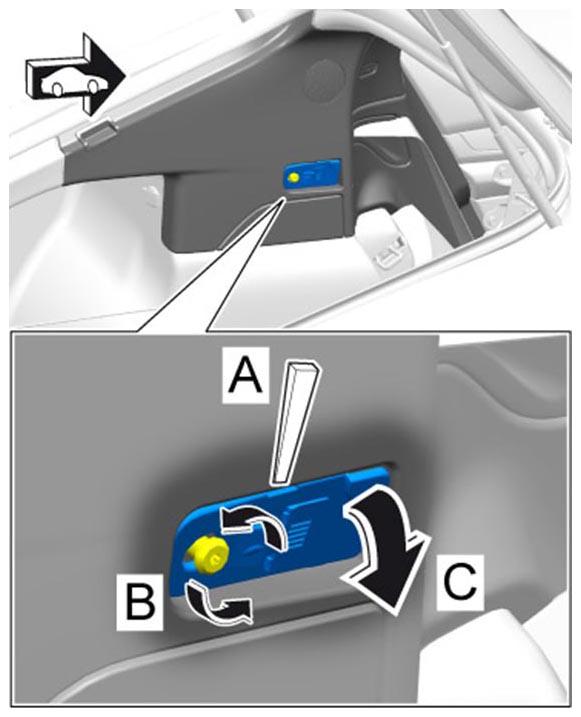

2. Remove cover.
   1. 2.1. Unclip cover -A-  .
   2. 2.2. Loosen bolts -B-  .
   3. 2.3. Swivel out cover with bolts -C-  and remove by pulling it upwards.
   Fig 1: Folding Rear Backrest Forward
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

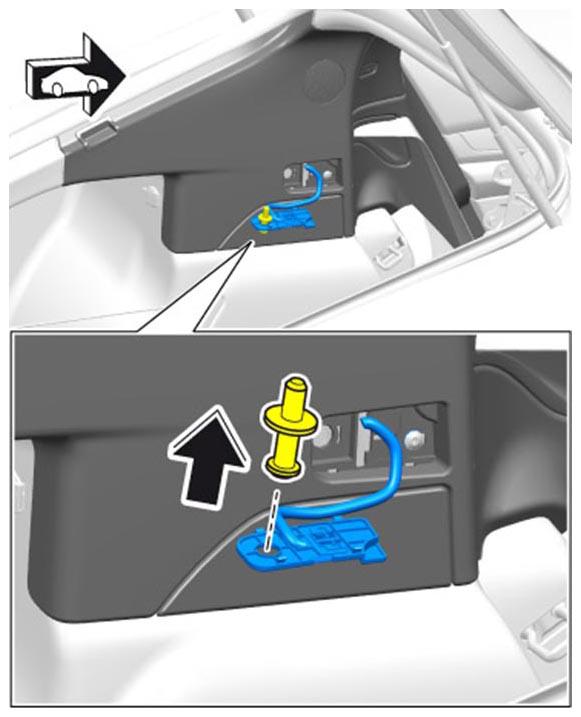

3. Remove bolts from the cover.
   Fig 2: Removing Bolts From Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

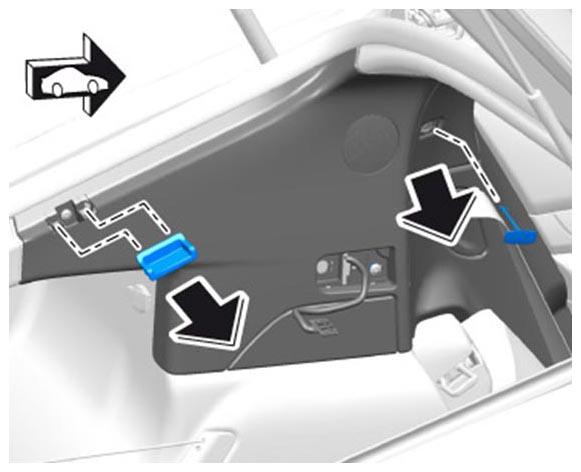

4. Lever off covers.
   Fig 3: Detaching Covers

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

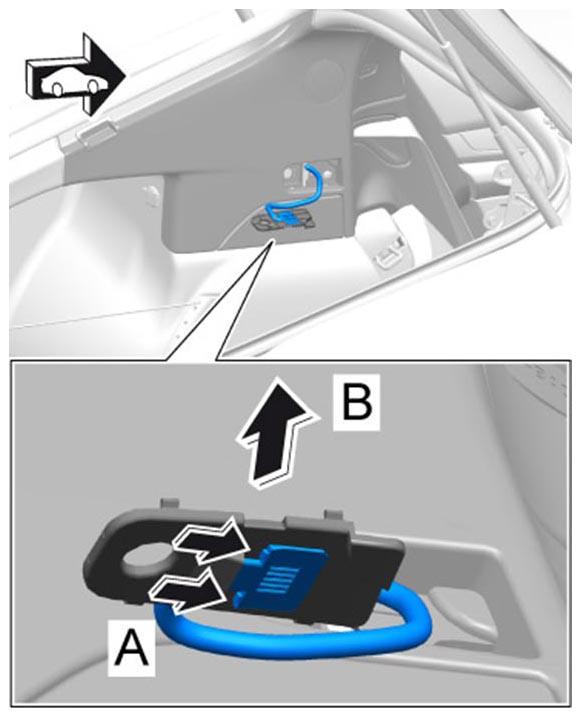

5. Unclip contact plate -A-  and remove it -B-  (if fitted).
   Fig 4: Removing Contact Plate

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

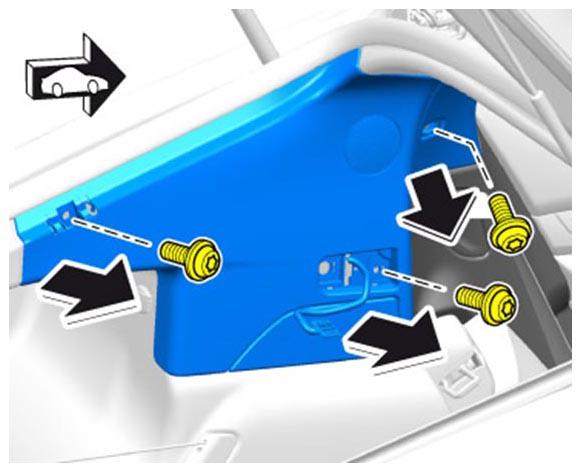

6. Unscrew fastening screws.
   Fig 5: Loosening Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

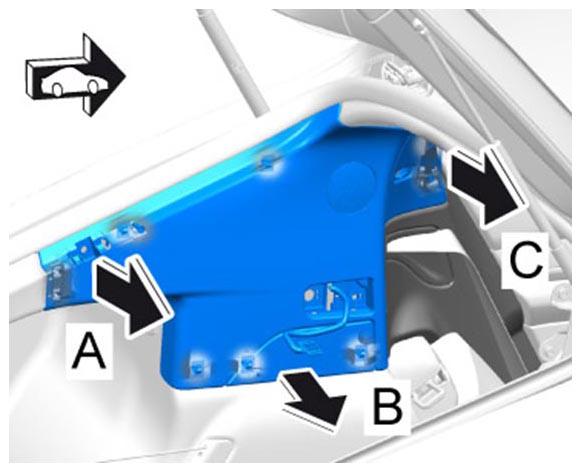

7. Unclip trim panel.
   1. 7.1. Unclip trim panel -A-  .
   2. 7.2. Unclip trim panel -B-  .
   3. 7.3. Unclip trim panel -C-  .
   Fig 6: Unclipping C-Pillar Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

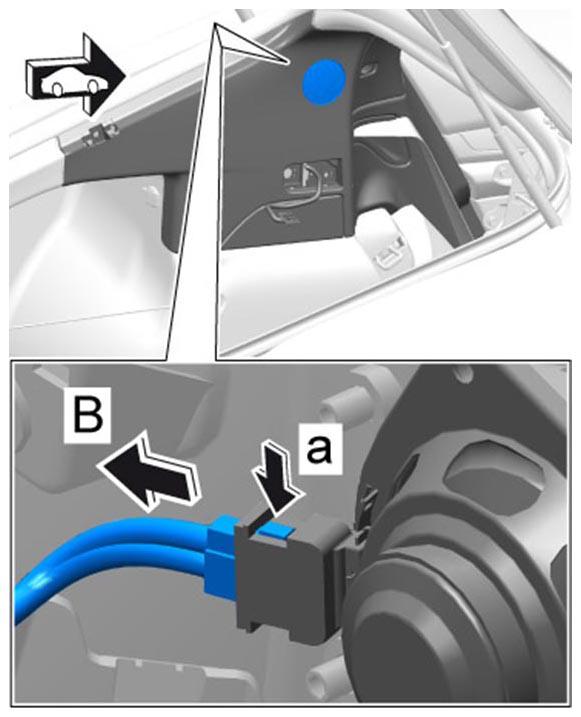

8. Release plug connection for C-pillar loudspeaker -a-  and pull it off -B-  (if fitted).
   Fig 7: Disconnecting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Guide contact plate through the trim panel (if fitted).
