Removing Rear Wheel Housing Liner

Unscrew fastening screw -1- securing wheel housing liner to center underbody panelling.
Unscrew fastening screws -1- on the rear underbody panelling.
Unscrew fastening screw -1- on the inside of the wheel housing liner.

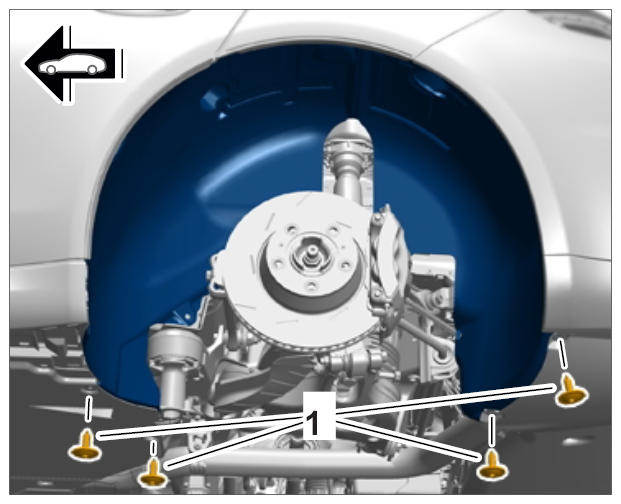

Fig 1: Rear Wheel Housing Liner Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew plastic nuts -2- on the inside of the wheel housing liner.

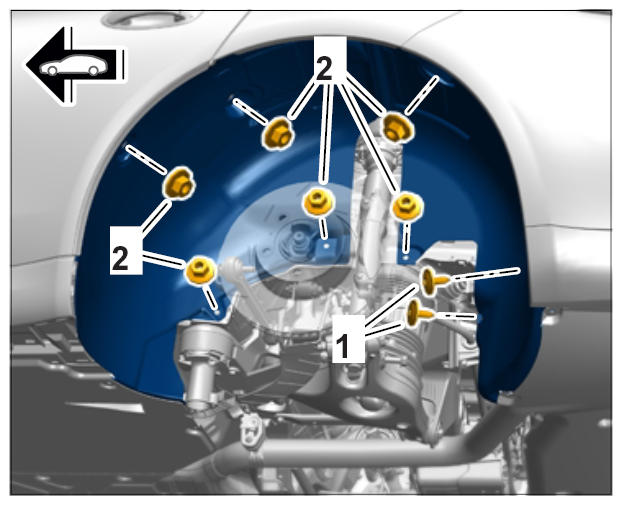

Fig 2: Identifying Wheel Housing Liner Screw And Plastic Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold underbody panelling aside and unclip clip using a suitable tool.

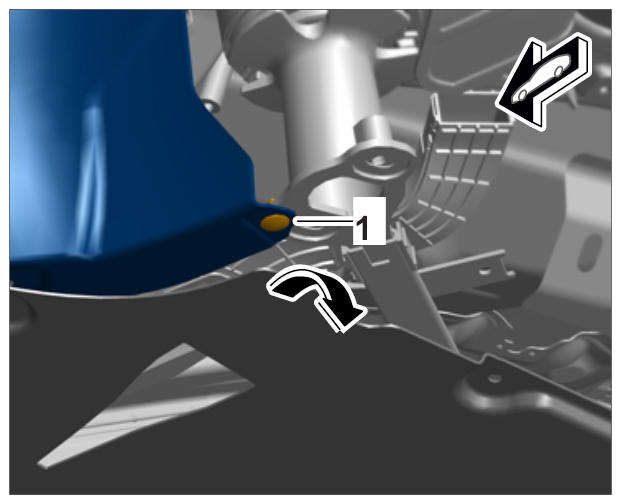

Fig 3: Fixing Clip Of Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove wheel housing liner.
