Installing Dashboard Support

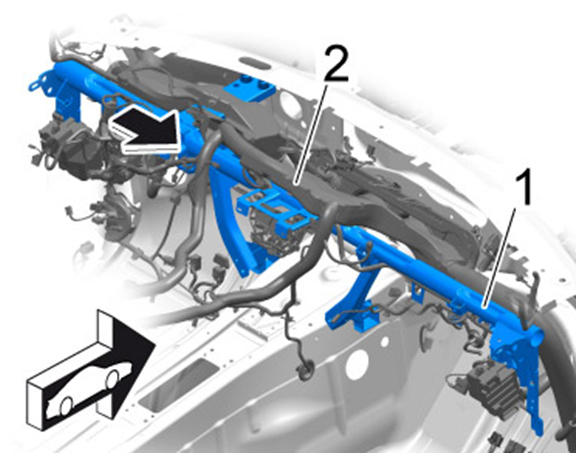

Move dashboard support -1- into the passenger compartment from the driver's side -arrow A- and guide it into the wire harness -2- .

Fig 1: Moving Dashboard Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

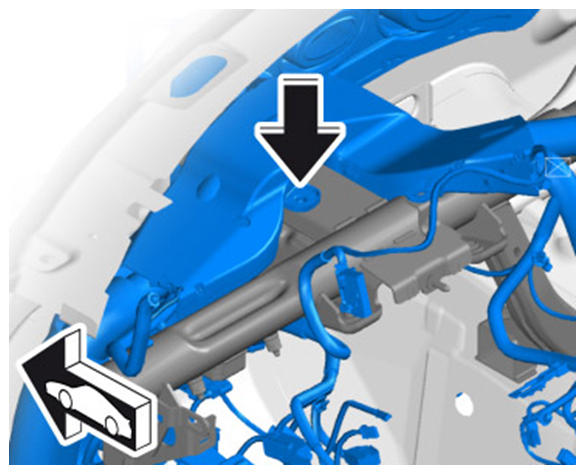

Screw in fastening screws -1- at the left and right, but do not tighten yet.

Fig 2: Securing Support To Body
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Align fastening screws -1- according to the marking -2- and tighten to the specified tightening torque Tightening torque 23 Nm (17 ftlb.) +/-2 Nm (+/-1.5 ftlb.) until secure.

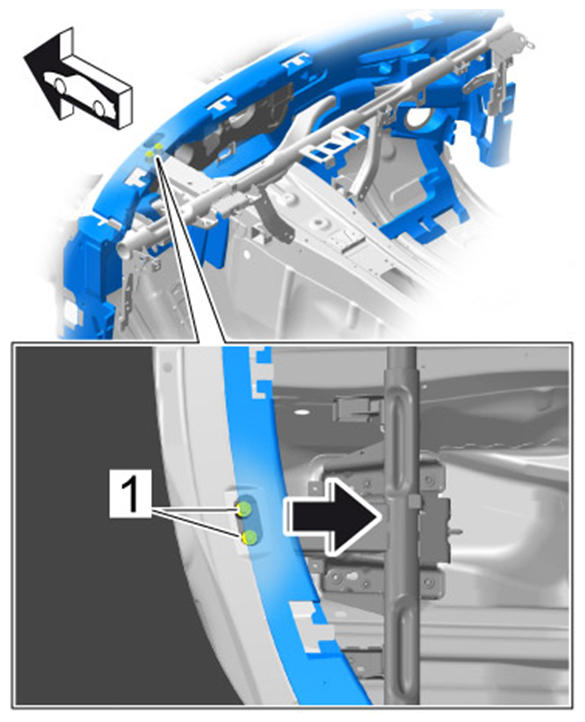

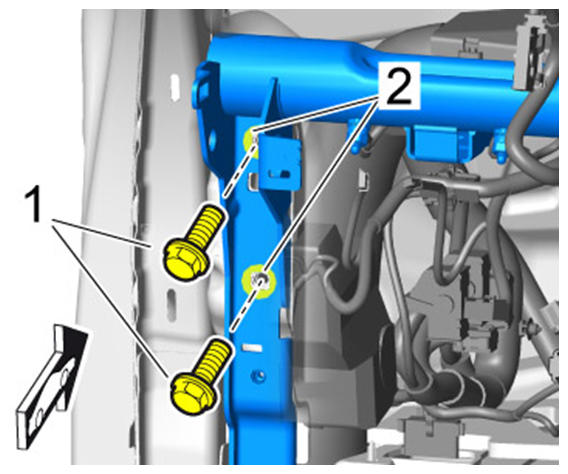

Pull sound absorber at the window frame towards the passenger compartment -arrow- and screw in fastening screws -1- .

Fig 3: Pulling Window Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

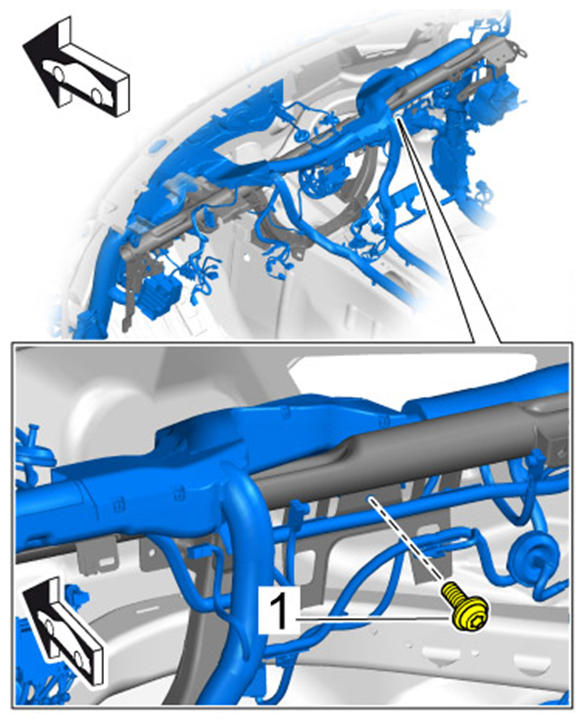

Screw in fastening screws -1- at the window frame and tighten to the specified tightening torque Tightening torque 23 Nm (17 ftlb.) +/-2 Nm (+/-1.5 ftlb.) until secure.

Fig 4: Pulling Window Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

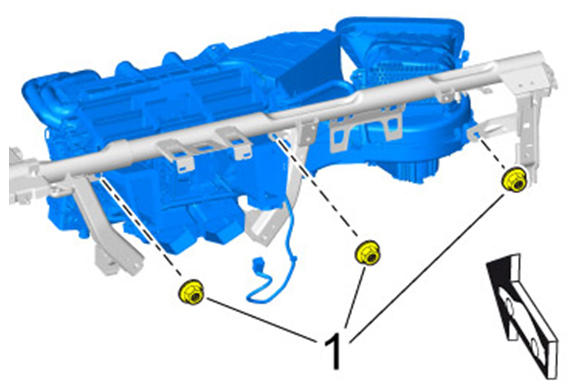

Tighten fastening nuts -1- for the heating/fresh-air unit to the specified tightening torque Tightening torque 8 Nm until secure.

Fig 5: Fastening Nuts On Heating/Fresh-Air Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

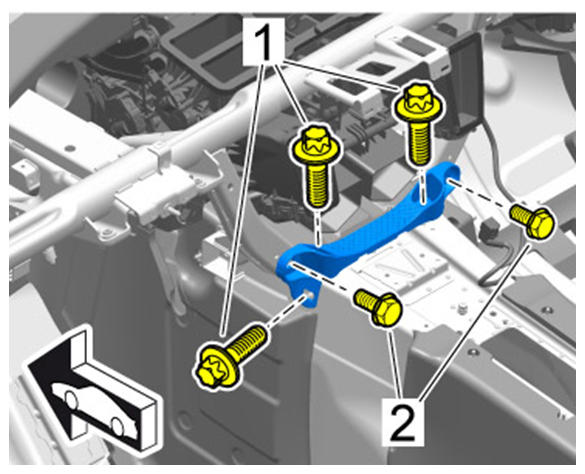

Secure holder to the center tunnel using fastening screws -1- and tighten to the specified tightening torque Tightening torque 23 Nm (17 ftlb.) +/-2 Nm (+/-1.5 ftlb.) until secure.
Secure holder to the dashboard support using fastening screws -2- and tighten to the specified tightening torque Tightening torque 4.6 Nm until secure.

Fig 6: Removing Center Tunnel Holder Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect ground cable to ground pin.

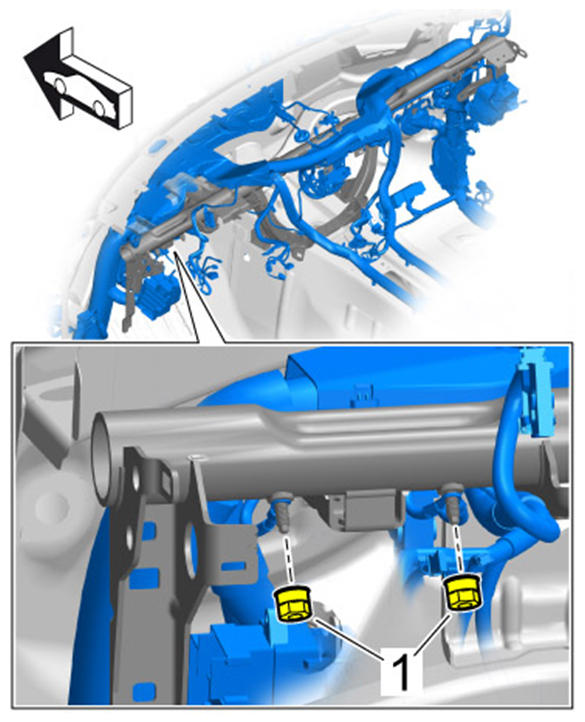

Screw on fastening nuts -1- on ground pins at the driver's side and tighten to the specified tightening torque Tightening torque 8.4 Nm until secure.

Fig 7: Installing Nuts Onto Ground Pins At Driver's Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw on fastening nuts -1- on ground pins at the passenger's side and tighten to the specified tightening torque Tightening torque 8.4 Nm until secure.

Fig 8: Installing Nuts Onto Ground Pins At Passenger's Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

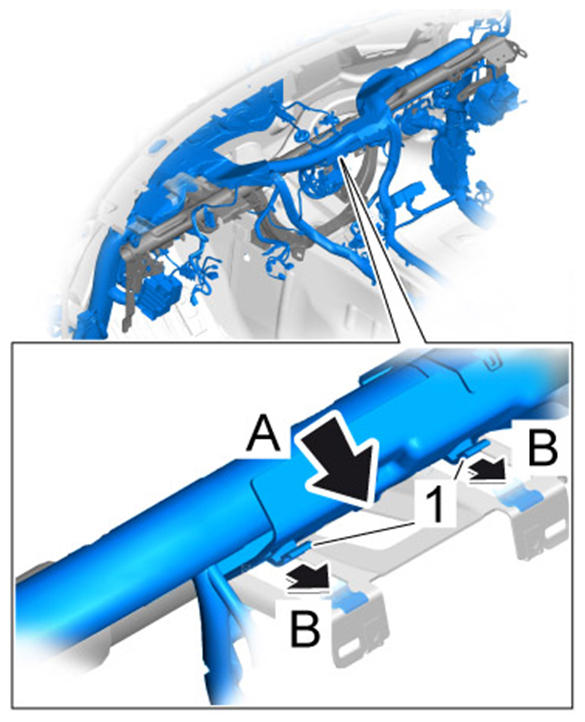

Insert retaining clips for cable duct -1- into the bracket -arrow A- .
Clip in retaining clips -1- (-arrow B- ).

Fig 9: Inserting Retaining Clips In Cable Duct
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press cable duct over the steering column into the guide.

Fig 10: Pressing Cable Duct
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Due to the large number of cable attachments, not all cable attachments can be described and illustrated.

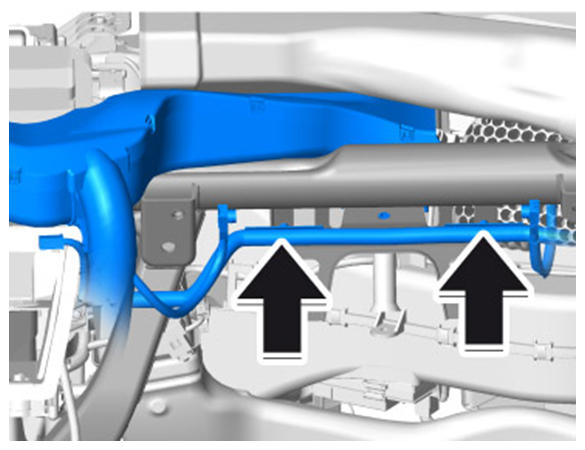

Clip in wire harness along the dashboard support -arrow- .

Fig 11: Removing Dashboard Support Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

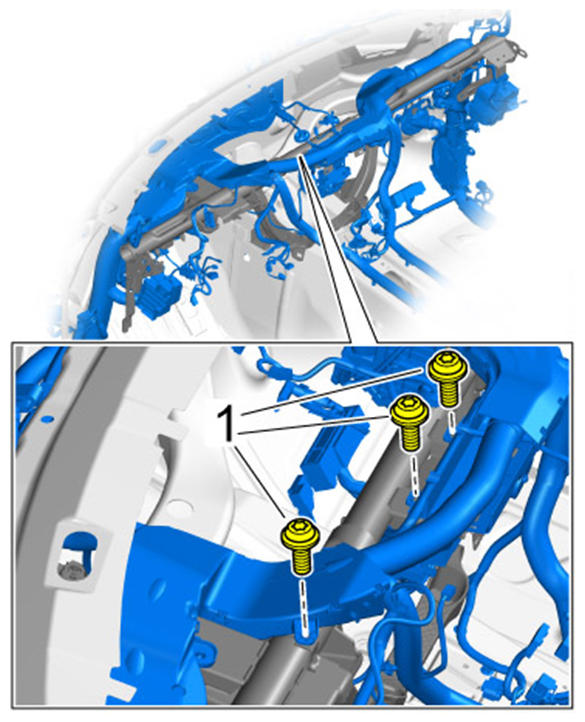

Screw in fastening screws -1- for the cable duct and tighten to the specified tightening torque Tightening torque 3.2 Nm until secure.

Fig 12: Removing Cable Duct On Driver's Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws -1- on the cable duct at the passenger's side.

Fig 13: Removing Cable Duct On Passenger's Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit tie-wraps if necessary in order to secure the wire harness to the dashboard support.
Lower the insulating mat.
Guide electric connections through the insulating mat.
Install bracket for fuse box at the left and right.

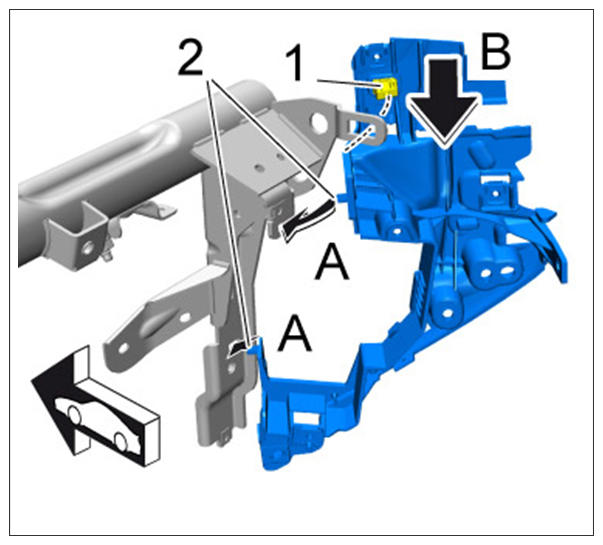

Swivel the holder -1- into place -arrow B- .

Insert guide pins -2- into the guides -arrow A- .

Fig 14: Installing Fuse Box Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
