Installing Front Gusset Plate

  1. Install front gusset plate.
    1. 1.1. Fit and secure the front gusset plate.
    2. 1.2. Plug-weld the gusset plate using inert gas -A-  .
    3. 1.3. Spot-weld using inert gas -B-  .

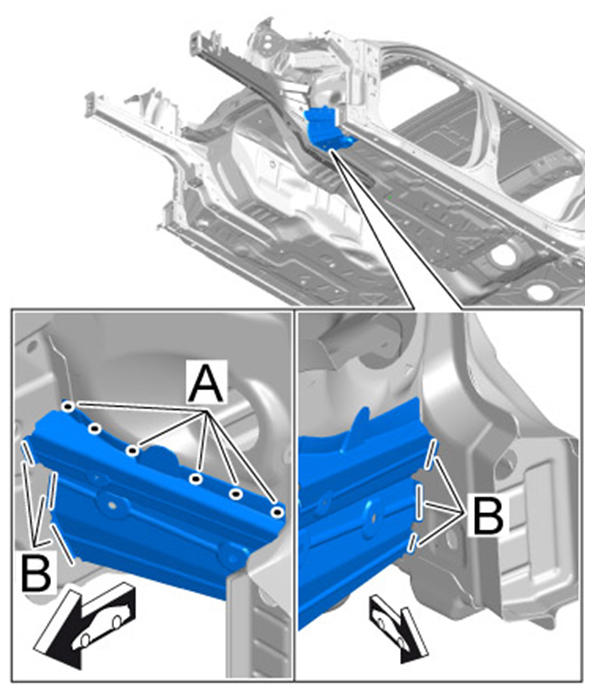

      Fig 1: Installing Front Gusset Plate (1 Of 2)
      G09809313Courtesy of PORSCHE CARS NORTH AMERICA, INC.

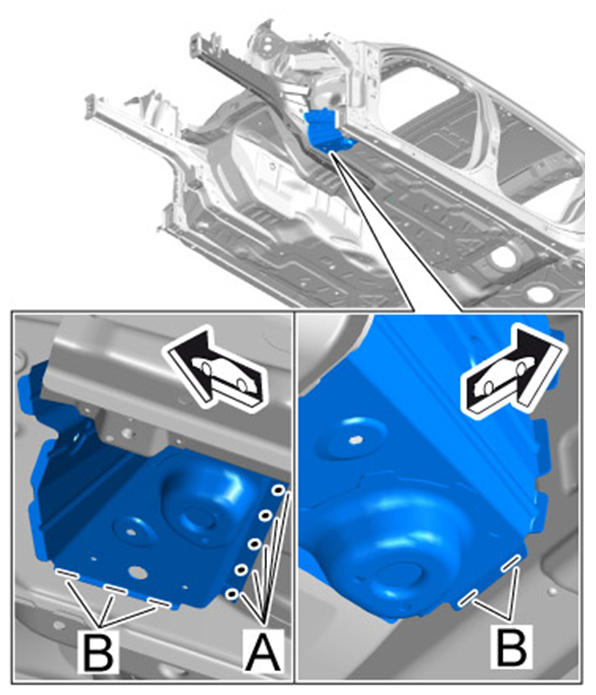

      Fig 2: Installing Front Gusset Plate (2 Of 2)
      G09809314Courtesy of PORSCHE CARS NORTH AMERICA, INC.
