Installing Front Side Member: Notes

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
• Do not begin bonding work until all materials and tools necessary for later repair work are available  .

1. Apply adhesive. → Application depth: 3.0 mm

   Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

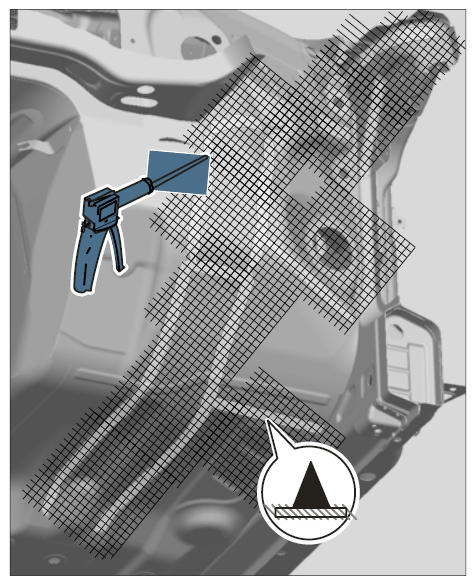

   Fig 1: Applying Adhesive

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Fit front side member and secure in installation position with the straightening bracket.

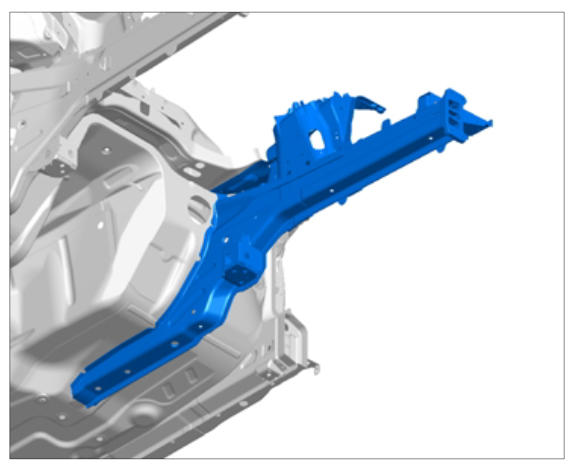

   Fig 2: Fitting Front Side Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Rivet in front side member.
   1. -A-  → BLIND RIVET 000.043.207.57
   2. -B-  → BLIND RIVET 000.043.207.58

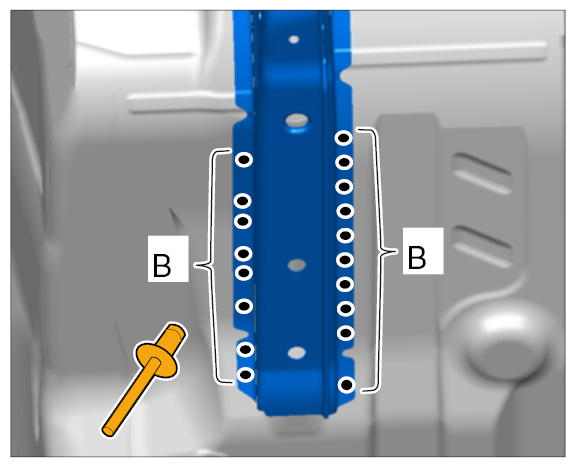

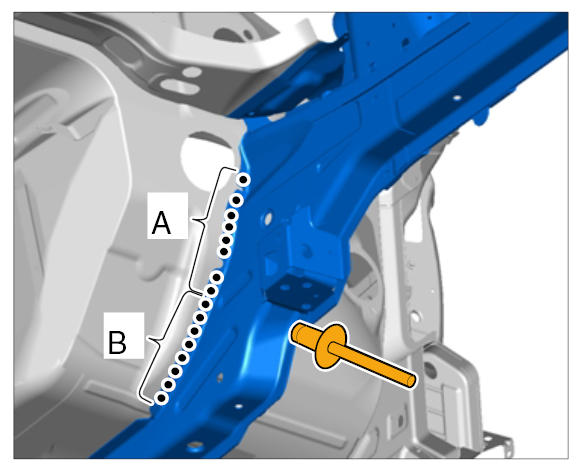

   Fig 3: Riveting In Front Side Member (Left)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

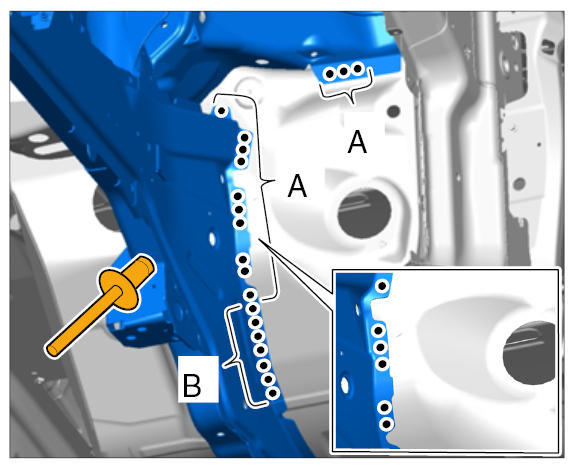

   Fig 4: Riveting In Front Side Member (Right)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

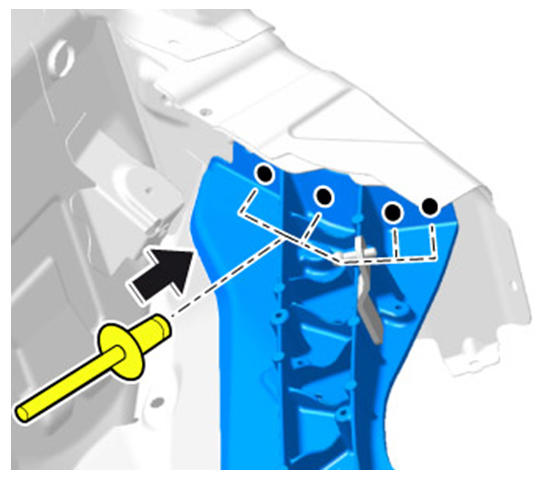

   Fig 5: Riveting In Front Side Member (Middle)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 6: Riveting In Front Side Member (Lower)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Weld in front side member.
   1. 4.1. Resistance spot-weld.

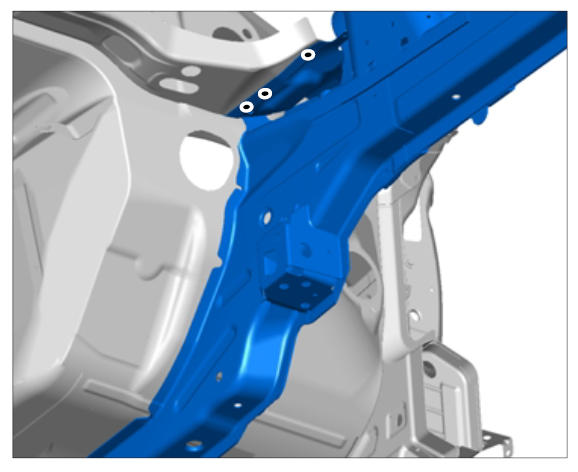

      Fig 7: Welding In Front Side Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 4.2. Plug-weld using inert gas.

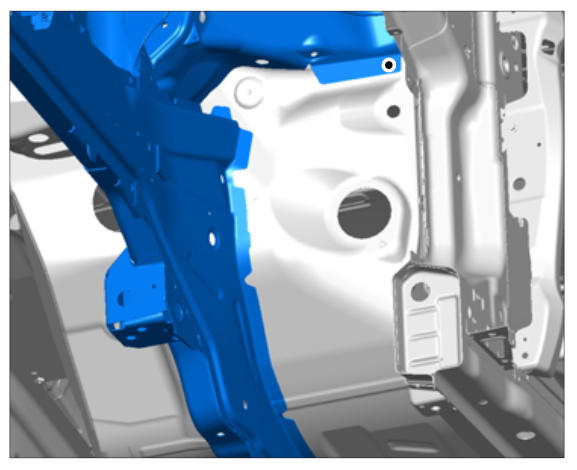

      Fig 8: Welding In Front Side Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Weld in front side member.

   Information

   Drill out hole for plug-welding using inert gas by one panel thickness.

   1. 5.1. Plug-weld using inert gas -1-  .
   2. 5.2. Plug-weld using inert gas -2-  .
   3. 5.3. Spot-weld using inert gas -3-

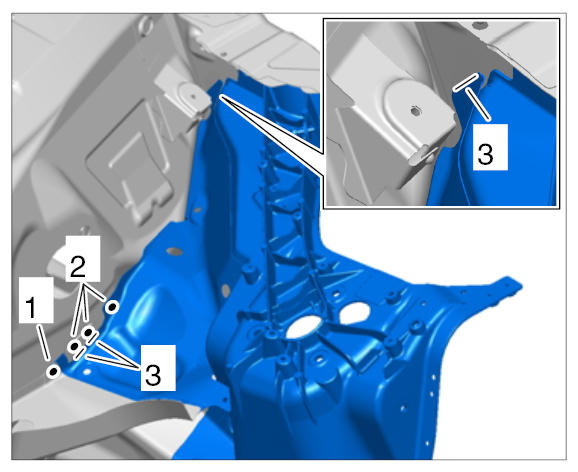

      Fig 9: Welding In Front Side Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
