Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screws for lock peg Item 2 Tightening torque 23 Nm (17 ftlb.)

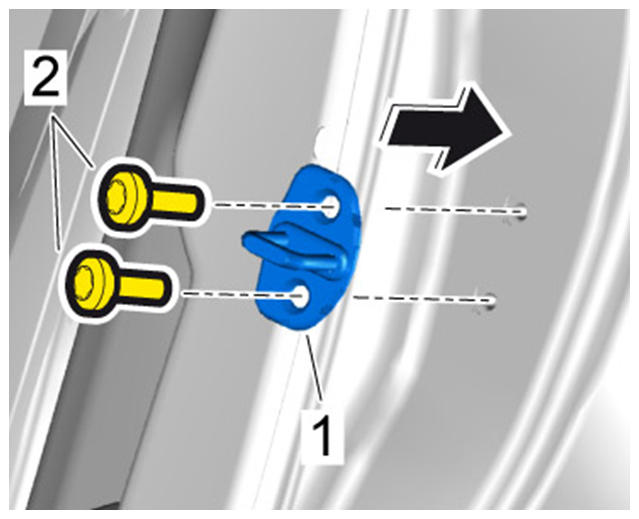

G09810437

Installing lock peg
Fastening screws for lock peg Adjusting lock peg, item 2 Tightening torque 23 Nm (17 ftlb.)

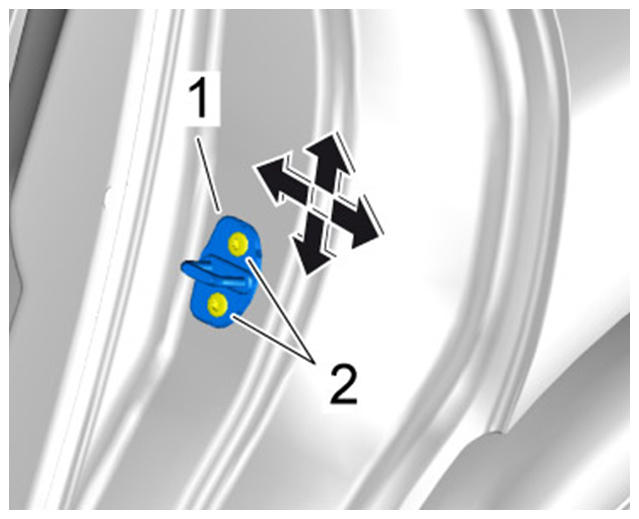

G09810438

Adjusting lock peg
