WM 303019 Removing And Installing Clutch Slave Cylinder - 6-Speed Transmission: Installing

Information

Before installing the clutch slave cylinder, grease the push rod with Kluberalfa in the area of the release-lever ball socket. Part No. 000.043.304.02 (50g tube).

→ Tightening torque: 23 Nm (17 ftlb.)

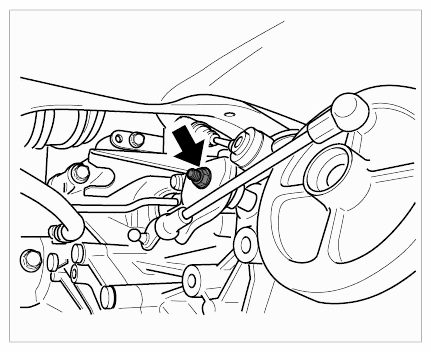

Insert external shift mechanism and tighten nut -Arrow-  .

→ Tightening torque: 23 Nm (17 ftlb.)

Fig 1: Locating External Shift Mechanism Fastening Nut

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

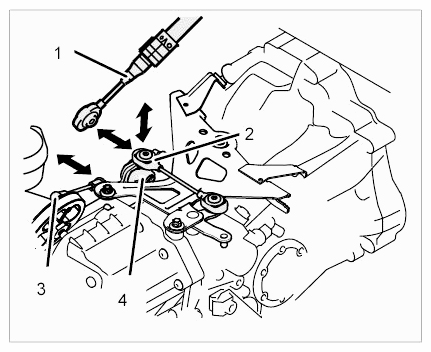

1. Shift cable
2. Connecting rod
3. Connecting rod
4. External shift mechanism

Fig 2: Pressing On Shift Cable And Connecting Rods

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

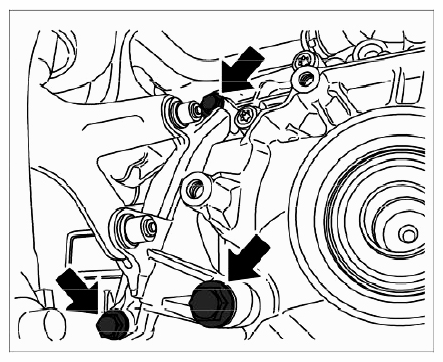

1. 4.1. Tighten screws securing transmission bracket to transmission.
   1. 4.1.1. Transmission bracket to Tiptronic transmission

      → Tightening torque: 65 Nm (48 ftlb.)

   2. 4.1.2. Transmission bracket to manual transmission

      → Tightening torque: 65 Nm (48 ftlb.)

   Fig 3: Locating Transmission Bracket Bolts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

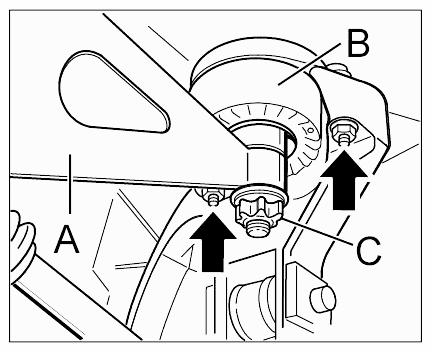

2. 4.2. Tighten nuts securing hydraulic mount to rear-axle carrier side section.
   1. Transmission support
   2. Hydraulic mount
   3. Fastening nut (never loosen)

      → Tightening torque: 33 Nm (24 ftlb.)

   Fig 4: Securing Hydraulic Mount To Rear-Axle Carrier Side Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
