Installing Air Conditioning Compressor

→ Do not start engine.

→ Do not tow the vehicle.

Information

• New compressors are pressurized and are filled with the required amount of oil for the refrigerant circuit!
• The remaining oil quantity in the individual components must therefore be taken into account!
• Refrigerant oil from the compressor or refrigerant oil removed by suction from a previously run air-conditioning system may no longer be used (special-category waste)!

1. If a new compressor is installed, first correct the refrigerant oil quantity in the air conditioning compressor. → Checking Refrigerant Oil In "New" Air Conditioning Compressor
2. Replace O-rings for the refrigerant lines and wet the new rings with refrigerant oil.
3. Install air conditioning compressor.

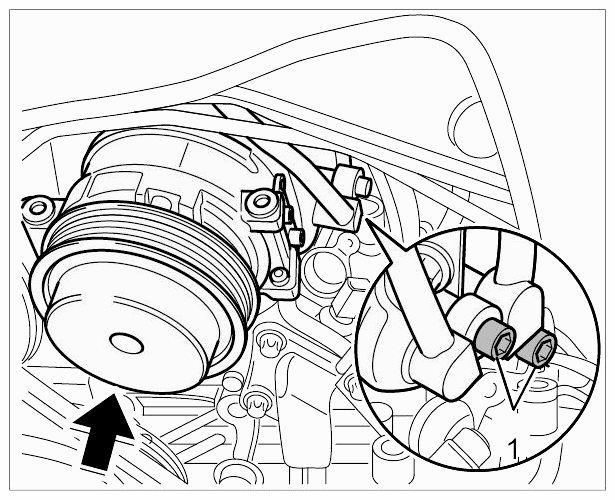

   Fig 1: Installing Air Conditioning Compressor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 3.1. Fit air conditioning compressor in -direction of arrow-  .
   2. 3.2. Remove stoppers from the refrigerant lines and connections on the air conditioning compressor.
   3. 3.3. Connect air conditioning lines and secure with the fastening screws -1-  . → Tightening torque: 20 Nm (15 ftlb.)

      Information

      Check that the line is routed correctly -arrow-  to avoid damaging the line.

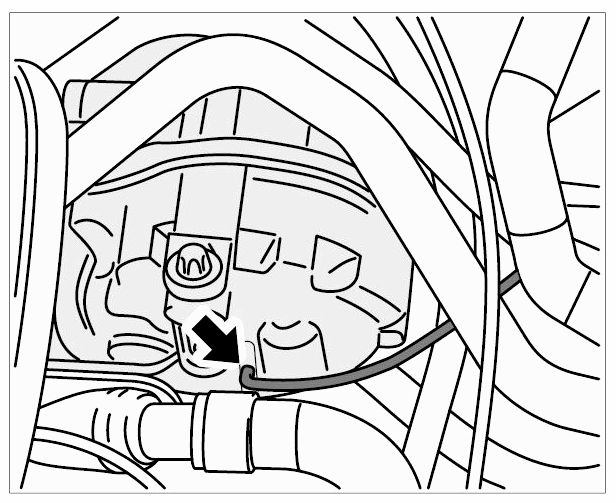

      Fig 2: Locating Line Routing For Air Conditioning Compressor

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 3.4. Place air conditioning compressor in installation position.
4. Secure air conditioning compressor.
   1. 4.1. Place holder -2-  in installation position -arrow-  .
   2. 4.2. Tighten the three fastening screws -1-  . → Tightening torque: 23 Nm (17 ftlb.)

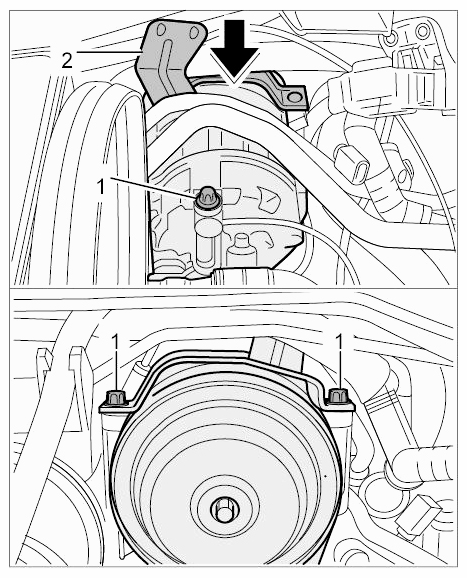

      Fig 3: Locating Air Conditioning Compressor And Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Connect plug connection for air conditioning compressor.
   1. 5.1. Slide plug-in coupling into the holder -arrow A-  .
   2. 5.2. Plug in the connector -arrow B-  until it engages securely.

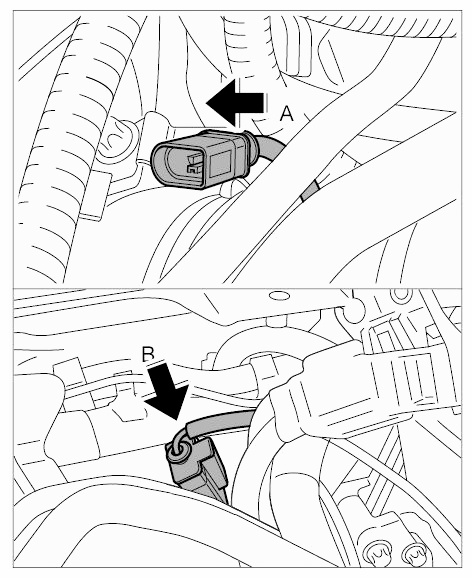

      Fig 4: Connecting Plug Connection For Air Conditioning Compressor

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Secure holder for refrigerant lines.
   1. 6.1. Insert rubber sleeve -3-  and close the holder -2-  .
   2. 6.2. Tighten fastening nut -1-  .

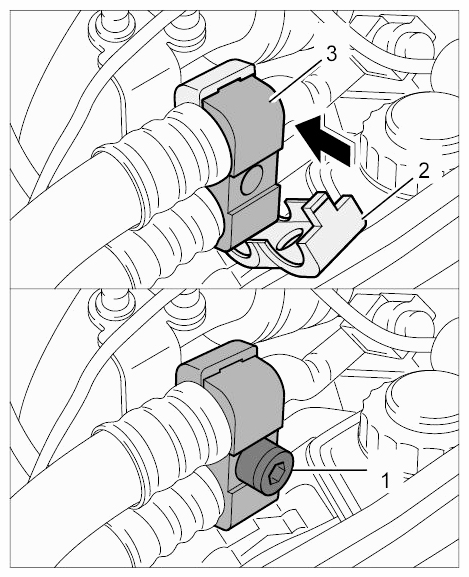

      Fig 5: Securing Holder For Refrigerant Lines

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Connect positive crankcase ventilation hose to the oil filler neck.
   1. 7.1. Place positive crankcase ventilation hose in installation position.
   2. 7.2. Connect the hose until the plug-in coupling -arrow-  engages securely.

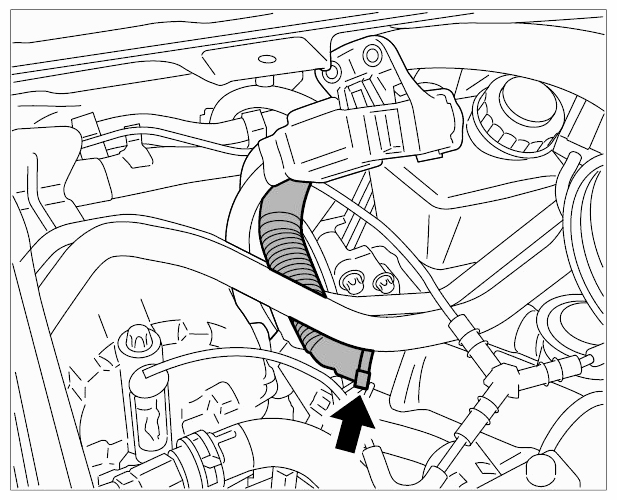

      Fig 6: Connecting Positive Crankcase Ventilation Hose To Oil Filler Neck

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Secure junction point for terminal 30 line in the engine compartment.
   1. 8.1. Position junction point for terminal 30 line in installation position.
   2. 8.2. Insert the two spacer sleeves -2-  .
   3. 8.3. Tighten the two fastening nuts -1-  . → Tightening torque: 10 Nm (7.5 ftlb.)

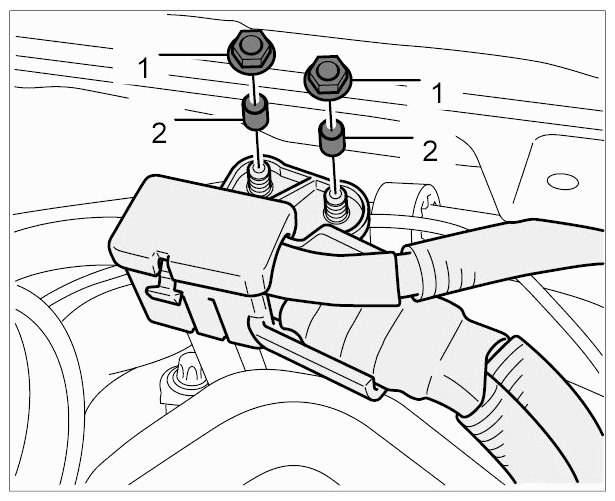

      Fig 7: Identifying Junction Point And Nuts

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
