Installing Hall Sender

  1. Replace O-ring. Lightly grease O-ring -arrow-  with Optimol MP3.

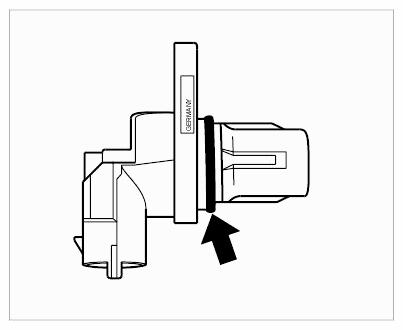

    Fig 1: Locating Hall Sender O-Ring
    G09586435Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit hall sender -3-  by screwing in and tightening the Torx screw (M6 x 16) -2-  . → Tightening torque: 7.5 ftlb.
  3. Push on cable plug -1-  .

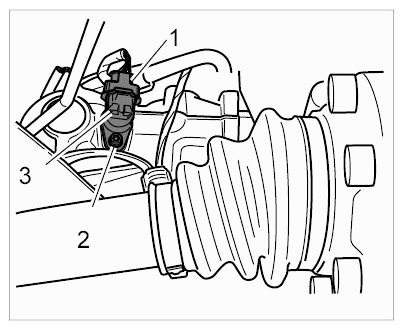

Fig 2: View Of Hall Sender For Cylinder 1-3
G09586436Courtesy of PORSCHE CARS NORTH AMERICA, INC.

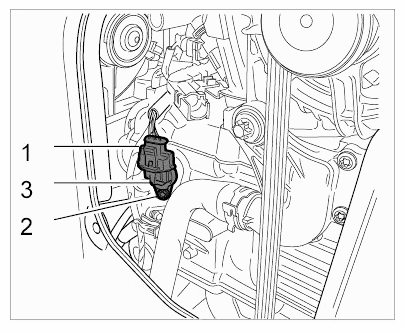

Fig 3: View Of Hall Sender For Cylinder 4-6
G09586437Courtesy of PORSCHE CARS NORTH AMERICA, INC.
