Installing Bracket For Oil Cooler

Information

Always replace gaskets and O-rings.

• Grease all gaskets (except for the cooling system) with Kluber Syntheso Glep (Part No. 000.043.204.68).

1. Replace stoppers at the connection points and fit new O-rings -1-  and profile seal -2-  .

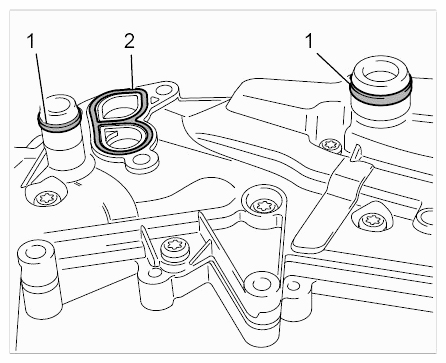

   Fig 1: Identifying Seals On Oil Cooler Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Install bracket for oil cooler from above.
3. Fit screws and tighten uniformly. → Tightening torque: 13 Nm (9.5 ftlb.)
   1. 3.1. Fit external Torx screws (M6 x 45). -1-

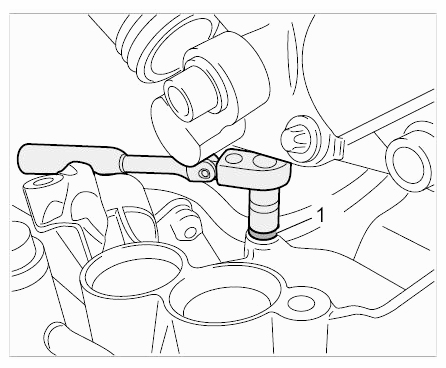

      Fig 2: Identifying Screws On Bracket For Oil Cooler (1)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 3.2. Fit external Torx screws (M6 x 60) -1-  and -1-  .

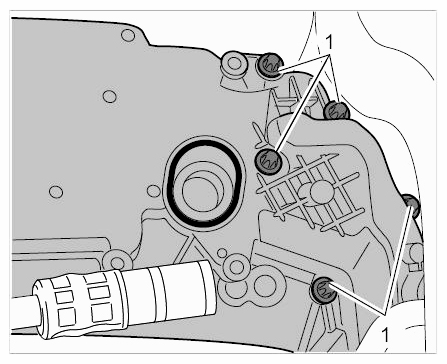

      Fig 3: Identifying Screws On Bracket For Oil Cooler (2)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

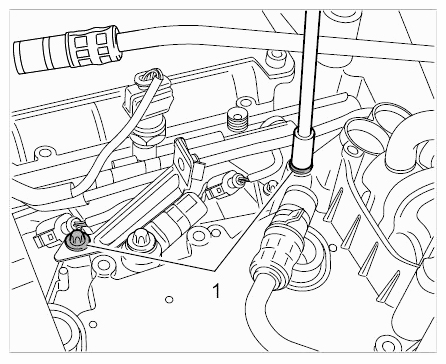

      Fig 4: Identifying Screws On Bracket For Oil Cooler (3)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Secure cable with the cable clip -1-  . → Tightening torque: 3 Nm (2 ftlb.)

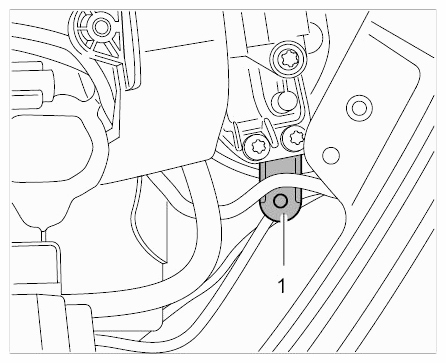

   Fig 5: Identifying Cable Clip On Oil-Filter Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Connect cable plug -1-  on oil pressure sensor.

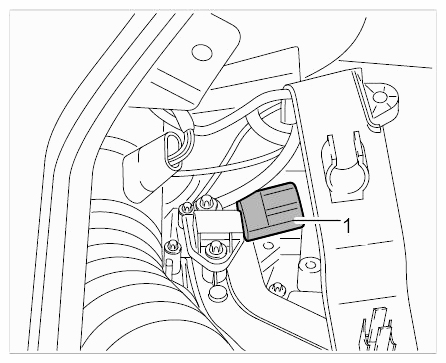

   Fig 6: Identifying Cable Plug On Oil Pressure Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
