Installing Cover For Outer Backrest

Insert cover -1- at the back in direction of arrow -inset A- and press into position at the front -inset B- .

Fig 1: Installing Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

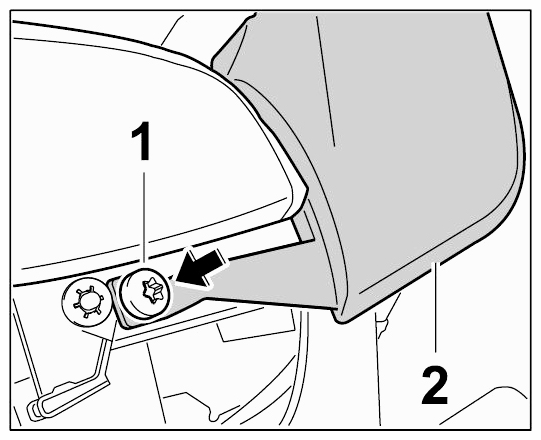

Screw down the cover -2- from below with the fastening screw -1- . → Tightening torque: 2.7 Nm (1.8 ftlb.)

Fig 2: Removing Backrest Cover Lower Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

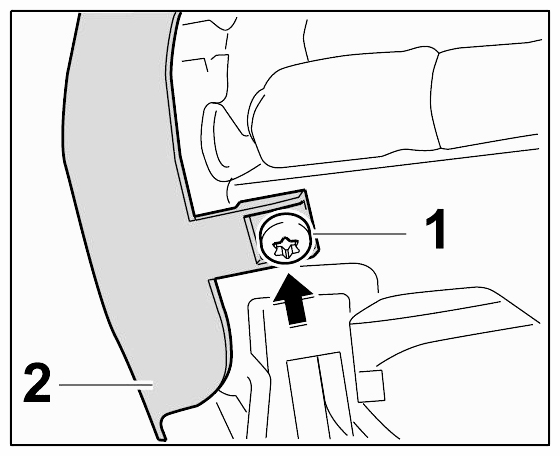

Screw down the cover -2- laterally with the fastening screw -1- . → Tightening torque: 2.7 Nm (1.8 ftlb.)

Fig 3: Tightening Backrest Cover Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
