Installing Padding For Front Backrest

  1. Apply adhesive -1-  to the marked area of the padding -2-  .

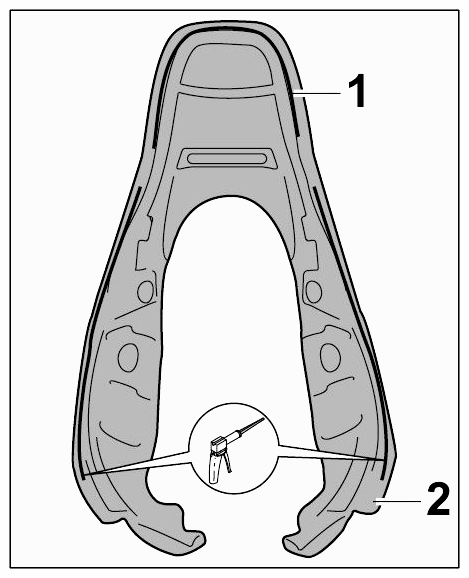

    Fig 1: Identifying Adhesive Applying Area
    G09592563Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Sealing surface of backrest frame must be clean and free of grease.

  2. Place padding -1-  on the backrest frame -2-  and straighten it -arrows-  .

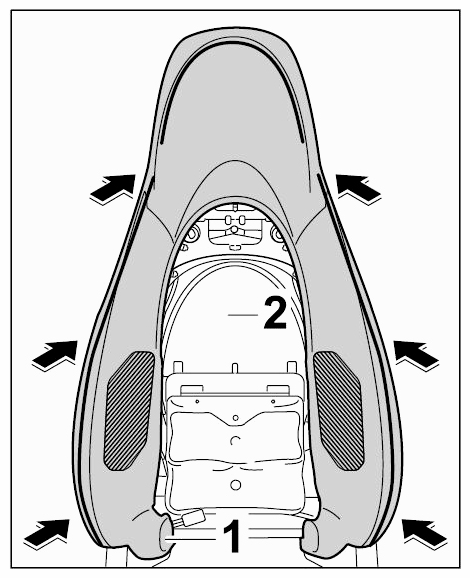

    Fig 2: Installing Padding On Backrest Frame
    G09592564Courtesy of PORSCHE CARS NORTH AMERICA, INC.
