Disassembling Backrest Frame

  1. Remove fastening nuts -1-  from the backrest frame -2-  , check them and replace if necessary.

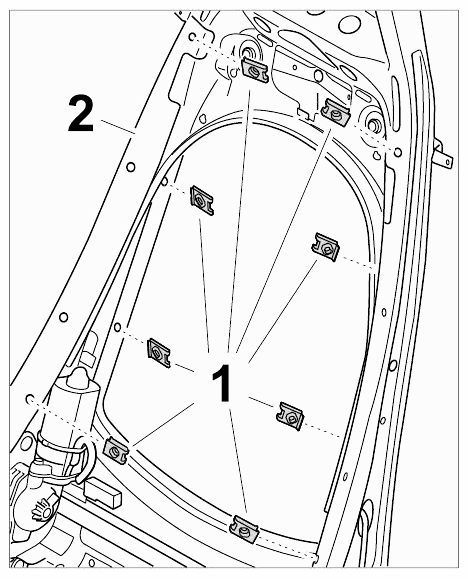

    Fig 1: Removing Fastening Nuts
    G09592164Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip fixing clips -1-  from the backrest frame -2-  , check them and replace if necessary.

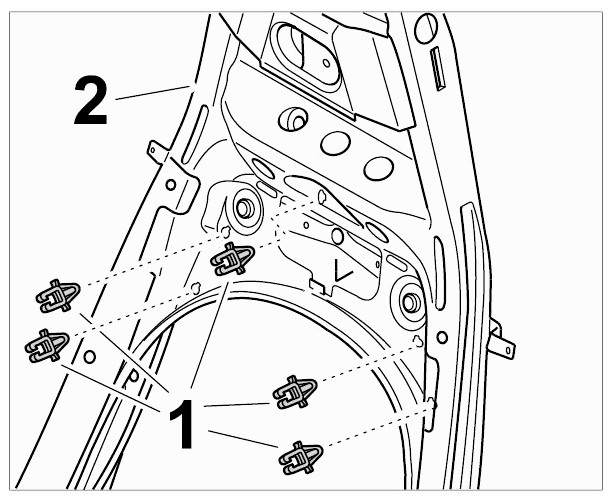

    Fig 2: Removing Fixing Clips
    G09592165Courtesy of PORSCHE CARS NORTH AMERICA, INC.
