Draining Transmission Oil

WARNING: This page is about a different variant/trim than selected.

NOTE: Fill level too low

→ Do not start the engine.

→ Do not tow the vehicle.

WARNING: Hot fluid
↓

→ Let the fluid cool down.

→ Wear personal protective gear.

Unscrew oil filler plug.

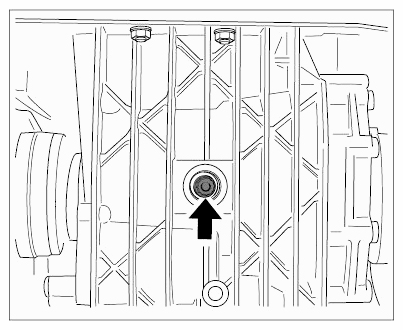

Fig 1: Locating Filler Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew oil drain plug and drain transmission oil.

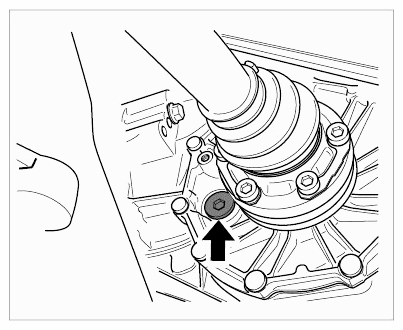

Fig 2: Locating Oil Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
