Removing Crankcase Vent Line

  1. Remove holding clamp by unscrewing the Torx screw (M6 x 12) -arrow-  .

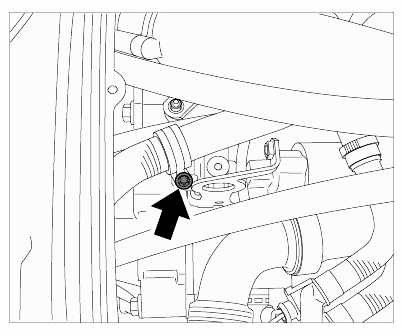

    Fig 1: Locating Holding Clamp Screw
    G09585096Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release and disconnect rapid-action couplings on both cylinder heads -arrow-  .

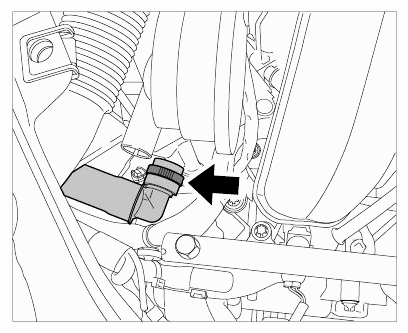

    Fig 2: Locating Rapid-Action Coupling On Vent Line
    G09585097Courtesy of PORSCHE CARS NORTH AMERICA, INC.

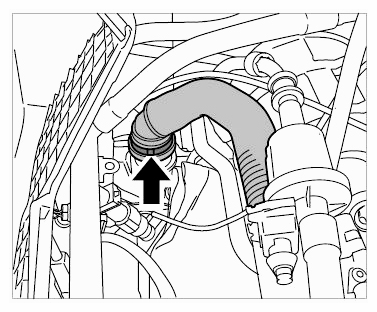

    Fig 3: Locating Rapid-Action Coupling (Cylinders 1 - 3)
    G09585098Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unclip all line clips.
  4. Guide line out of the engine compartment.
