Removing Rear Trunk Floor Panel

Remove closing cross member. → Removing Closing Cross Member

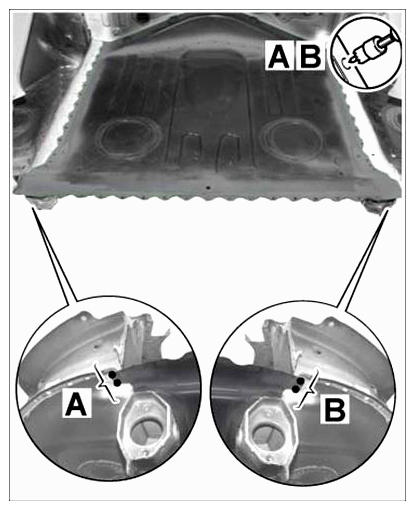

Milling off spotwelds
1. 2.1. Mill off spotwelds from below in area -A- using a spotweld cutter.
Fig 1: Identifying Spotwelds Area (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

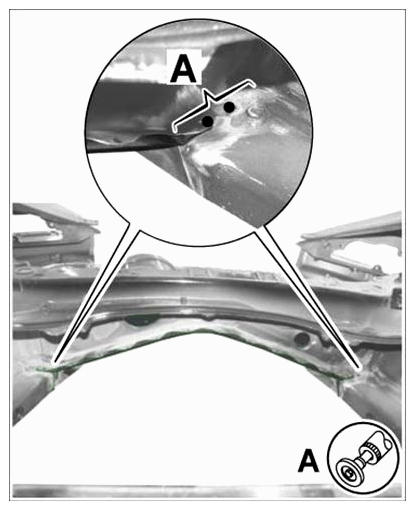

Separating spotwelds
1. 3.1. Separate spotwelds at the left and right in area -A- using a parting grinder.
Fig 2: Separating Spotwelds Area (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

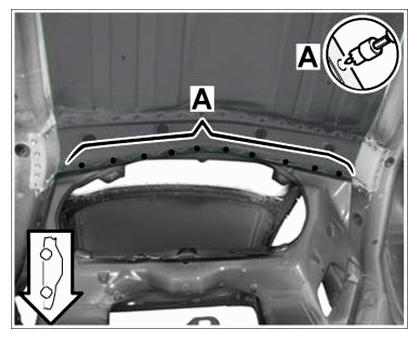

Milling off spotwelds
1. 4.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter.
Fig 3: Identifying Spotwelds Area (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

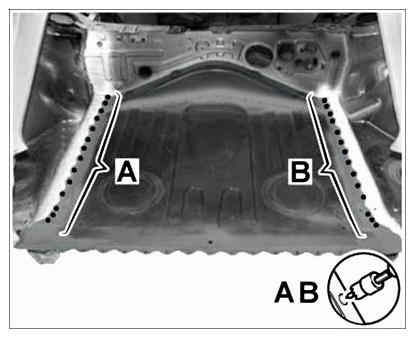

Milling off spotwelds
1. 5.1. Mill off spotwelds from below in areas -A- and -B- using a spotweld cutter.
Fig 4: Identifying Spotwelds Area (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
