Adjusting Rear Axle Toe

WARNING: This page is about a different variant/trim than selected.

WARNING: Steering-angle sensor not calibrated or calibrated incorrectly

Unexpected vehicle handling
Steering-angle sensor does not function
Malfunction in steering-angle sensor
1. After working on wheel suspension parts, when replacing the steering-angle sensor, and after changing the wheel alignment values, calibrate the steering-angle sensor using the Porsche System Tester.
  > 456005 INITIALISING AND CALIBRATING STEERING-ANGLE SENSOR
2. Keep the front wheels in straight-ahead position on the measuring platform during calibration.
3. Check the actual value of the steering-angle sensor after suspension alignment where no changes were made to the wheel alignment values.

Always observe specified tightening torque for lock nut on toe eccentric adjuster -B- !

The toe is adjusted at the toe eccentric adjuster -B- !

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

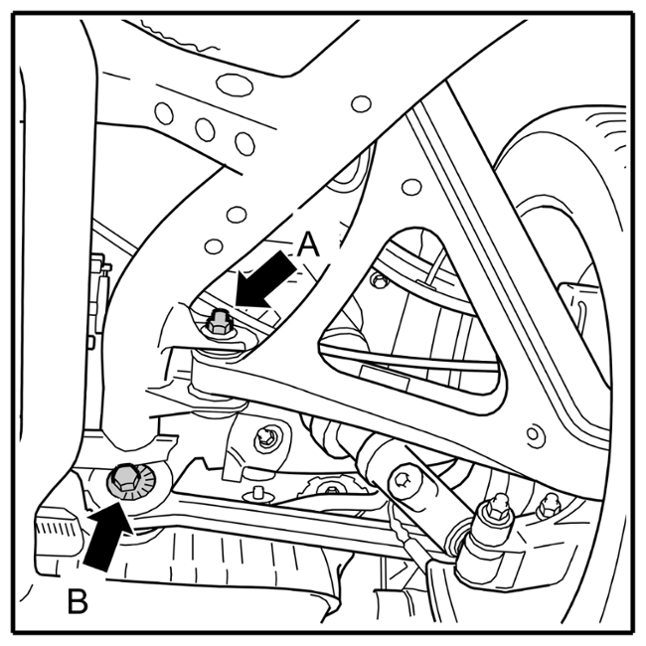

Toe eccentric adjuster (example shown)

After loosening fastening nut, turn toe eccentric -B- as required.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

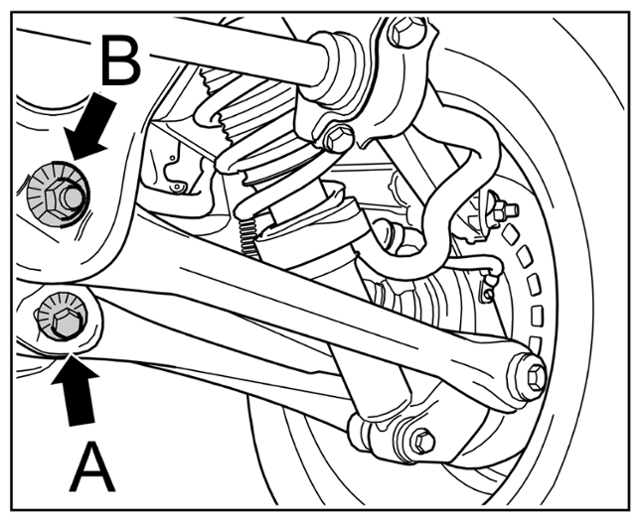

Toe eccentric adjuster (example shown)
