Removing Carbon Canister - Row (Rest Of The World)
WARNING: This page is about a different variant/trim than selected.

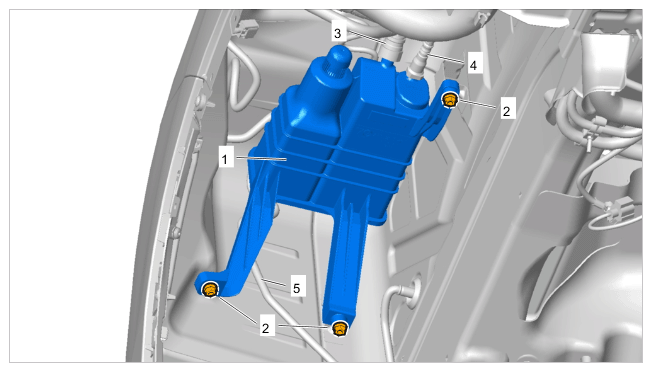

Component overview of carbon canister
| 1 | Carbon canister |
| 2 | Fastening screws |
| 3 | Thick blue hose |
| 4 | Thin black hose |
| 5 | Electric line |
- Unscrew three fastening screws -2- on the carbon canister -1- .
- Release hose connections -3 + 4- by pressing them together and pull them off.
- Unclip electric line -5- at the back of the carbon canister from the brackets.
