Installing Radiator

Do not open the air-conditioning system if at all possible when removing the radiator module  . Do not bend the lines

Do not bend the lines when installing the radiator module.

1. Carefully slide in the radiator from above.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sliding in radiator

2. Press the securing frame and radiator together.
3. Slide on the metal clips -Arrows-  used to secure the securing frame to the radiator.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Securing points on radiator frame

4. Secure the power-steering cooler. To do this, push the power-steering cooler from left to right into the holder (-A-  ) and then clip the lines into the holder (-B-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lines in holder on power-steering cooler

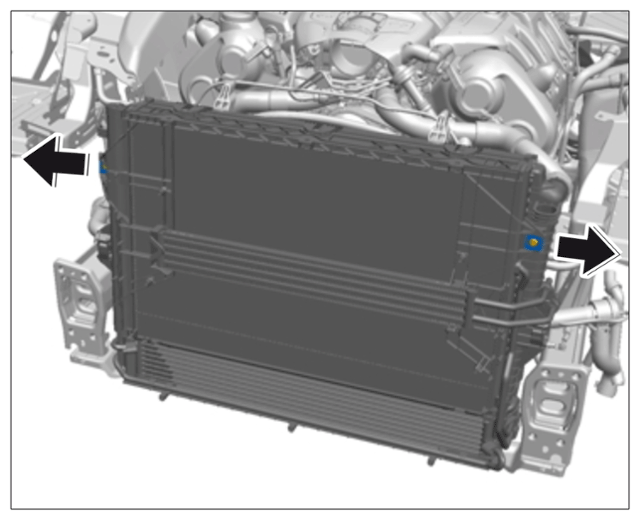

5. Slide the holders into the rubber sleeve for the radiator at the left and right sides -Arrows -  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Supports for radiator at the sides

6. Install both holders -Arrows-  at the left and right of the radiator. To do this, push the clips into the holders from above and clip them in.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws for radiator

7. Tighten fastening screws -6-  securing lock carrier to the holder.

   > Tightening torque 5 (3.5 ftlb.) Nm

8. Tighten fastening screws -7 and 8 -  securing bumper to the holder.

   > Tightening torque 25 (19 ftlb.) Nm

9. Position the holder and tighten the fastening screw -5-  used to secure the holder for the power-steering cooler lines.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screw for power-steering cooler holder

10. Tighten the fastening screw -3-  securing the line holder to the ATF cooler (right in direction of travel) and the fastening screw -4-  securing the line holder to the condenser (left in direction of travel).

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws on radiator

11. Slide breather hose -2-  onto the right side of the radiator and fit the spring band clamp.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Breather hose on radiator

12. Push on the coolant hose -1-  and then slide on the safety clip for the adapter. The safety clip must lock with an audible click.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hose on radiator
