Component Information

WARNING: This page is about a different variant/trim than selected.

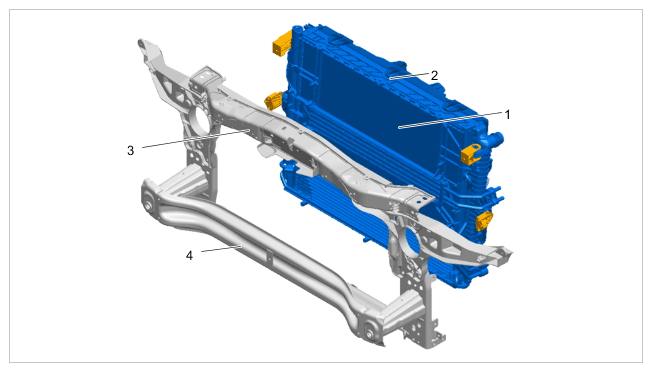

Fig 1: Radiator Components Location
G16307710Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview for radiator

1  Radiator
2  Securing frame
3  Lock carrier
4  Bumper
