Component Overview
WARNING: This page is about a different variant/trim than selected.

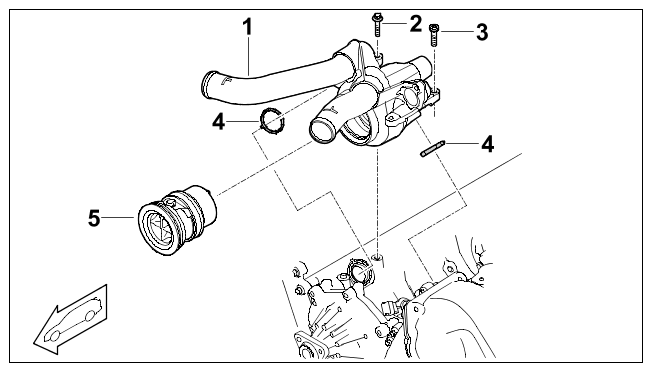

Thermostat housing and coolant regulator
| 1 | Thermostat housing |
| 2 | Screw, M6 x 25 |
| 3 | Screw, M6 x 25; screwed to fuel high-pressure distribution pipe => see relevant section |
| 4 | Seal for thermostat housing; replace |
| 5 | Thermostat insert; including electric heating element |
