Removing Coolant Pump

Information

The pictures shown in this document may differ from the original.

Information

• To ease removal, spray the pulley from the rear side with an anti-corrosion agent.

1. Loosen the three fastening screws on the coolant pump pulley. Block the pulley with a > Nr.38 - holder or > Nr.193 - brace if necessary or if the belt drive is removed.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

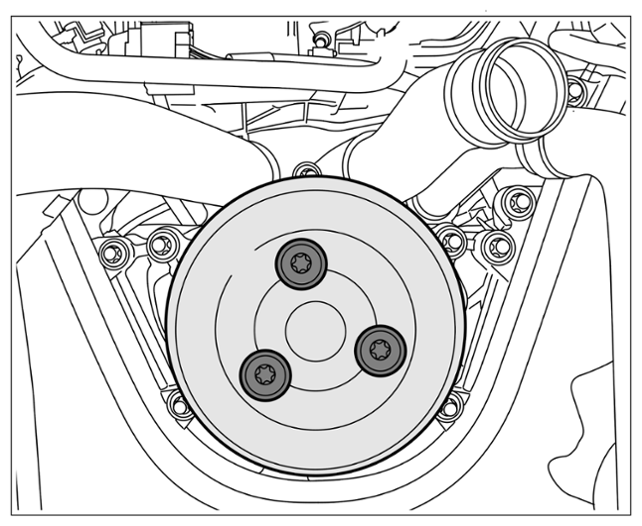

   Pulley

2. Detach drive belt from water pump. For details, see > 137819 REMOVING AND INSTALLING DRIVE BELT
   NOTE: NOTIFICATION
   Incorrect handling of pulley

   • Risk of damage to pulley

     → The pulley is sensitive to impact. Do not prise off the pulley with a screwdriver.

     → Do not re-use a damaged pulley.

3. Unscrew the three loosened fastening screws on the pulley > Pulley  and remove the pulley.
4. Unscrew the fastening screws > Coolant pump mounting -3-  on coolant pump.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

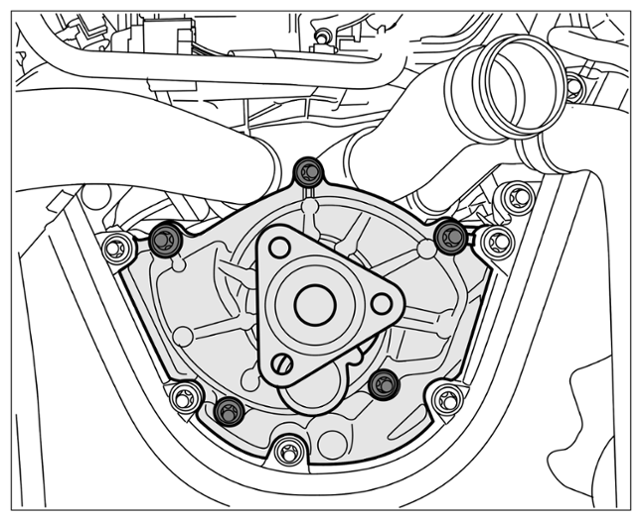

   Coolant pump mounting

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

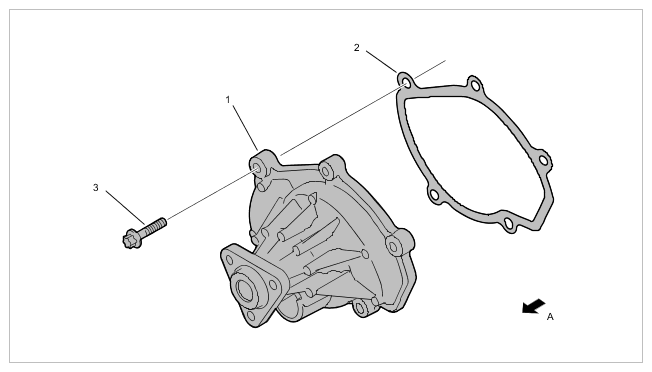

   Coolant pump

   1	Coolant pump
   2	Seal; rubber seal fitted in coolant pump
   3	Screw, M6 x 25
   A	Direction of travel

5. Remove the coolant pump.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

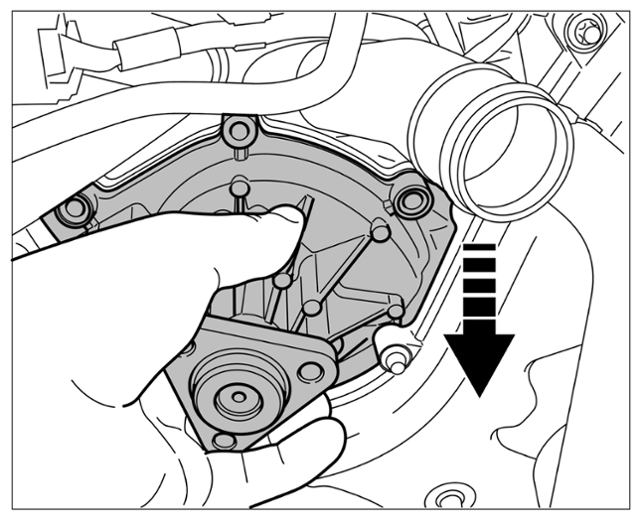

   Removing coolant pump.

6. If the pump is stuck, loosen it by gently tapping with a plastic hammer. > Loosening coolant pump with a plastic hammer

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

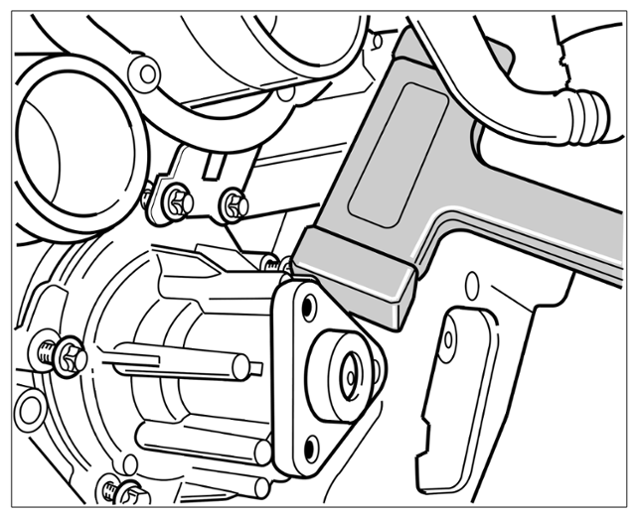

Loosening coolant pump with a plastic hammer
