Component Overview
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

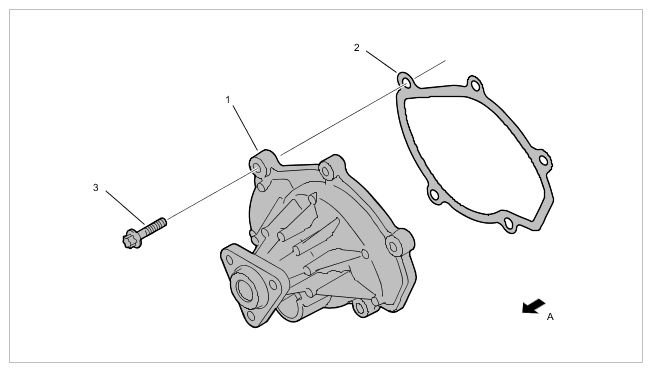

Coolant pump
| 1 |
Coolant pump |
| 2 |
Seal; rubber seal fitted in coolant pump |
| 3 |
Screw, M6 x 25 => For tightening sequence, see below |
| A |
Direction of travel |
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

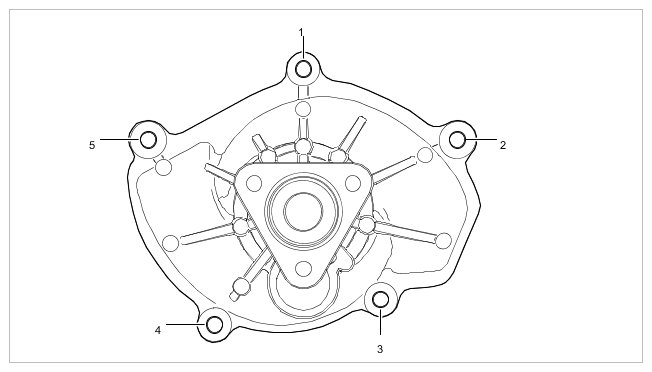

Tightening sequence for coolant pump
