Draining Coolant

WARNING: This page is about a different variant/trim than selected.

WARNING: Toxic substances

WARNING: Hot fluid

WARNING: Rotating components

Danger of limbs being trapped or severed
→ Disconnect power supply to the drive motor of components or to the battery.

NOTE: NOTIFICATION
Cooling circuit not filled correctly

Risk of damage to vehicle components
→ After relieving the system pressure, do not start the engine or high-voltage system.

→ Fill and bleed the cooling system correctly before starting the engine or high-voltage system.

Information

The coolant filled in at the factory is intended to suffice for the entire service life. As long as the coolant is not contaminated by foreign bodies or other fluids it need not be changed.
Different coolant additives must not be mixed and doing so may damage the cooling system. Only use original Porsche coolant additives.
The coolant must be set to antifreeze protection of -37°C. This corresponds to a mixing ratio of 50: 50 (coolant additive: water). This mixing ratio provides optimum corrosion and antifreeze protection.
Coolant additives, coolants and cleaning agents must be disposed of according to the respective, applicable national laws.
Seals in the cooling system must be replaced by new ones following disassembly.

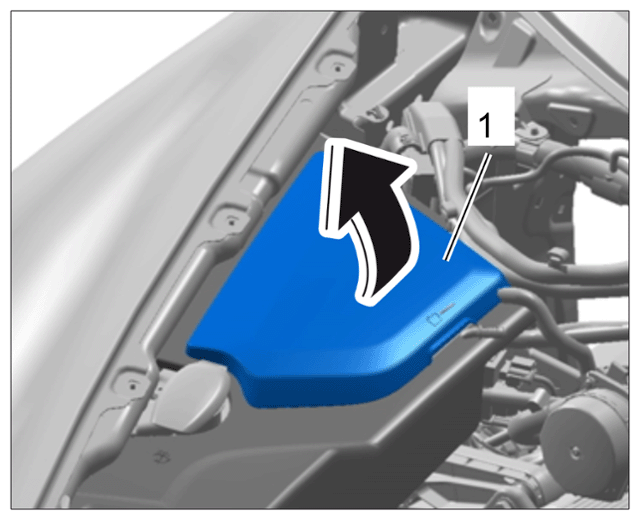

Open the maintenance cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Maintenance cover

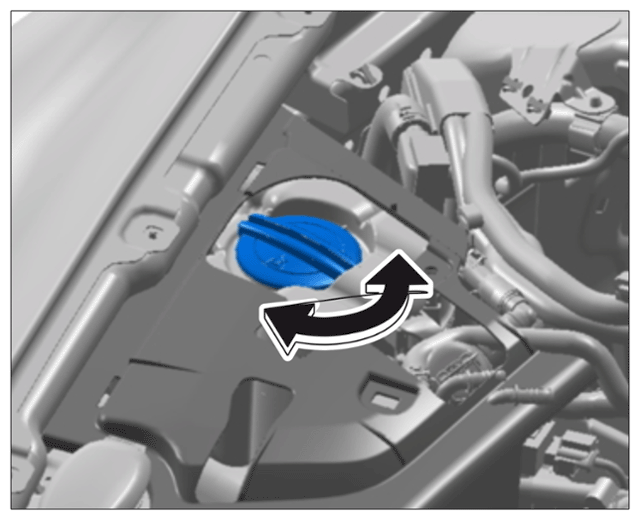

Carefully open the cap on the coolant reservoir. Unscrew the cap in an anti-clockwise direction.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cap on coolant reservoir
Remove cap.

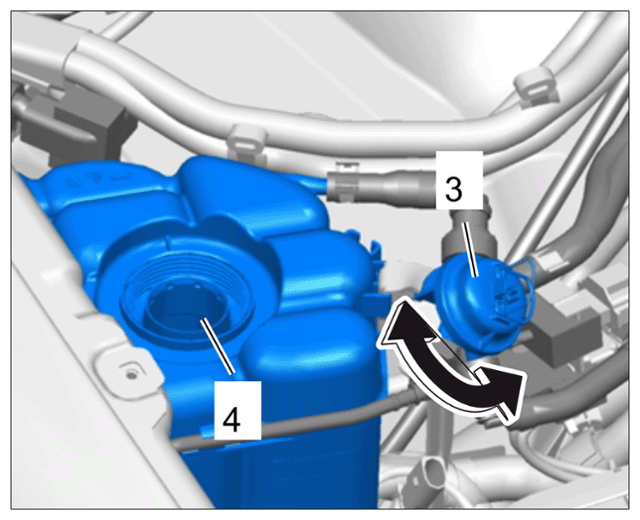

Move service clip on bleeder valve assembly -3- into service position. The bleeder valve assembly is located next to the filler neck for the coolant reservoir -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bleeder valve assembly
Drain the cooling system.

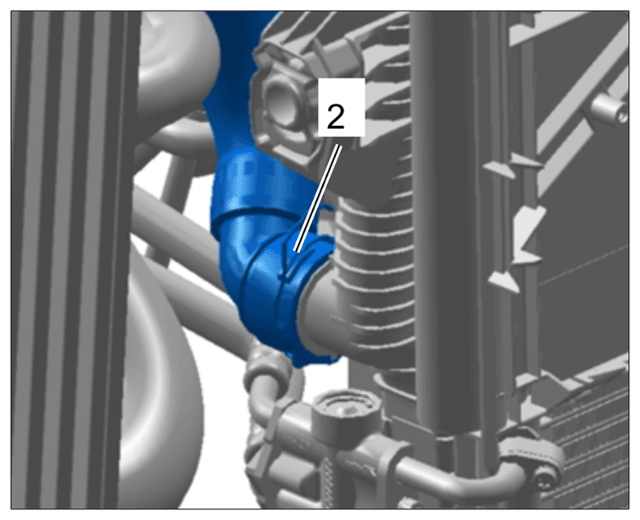

1. 5.1 Drain the cooling system. Open the coolant hose -2- on the bottom right radiator (in direction of travel), drain coolant into a container and dispose of it in accordance with the applicable national laws if no longer required.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Opening coolant hose
Secure the coolant hose -2- on the radiator again.

Proceed as follows if the cooling system needs to be bled again (in order to clean the cooling system for example):

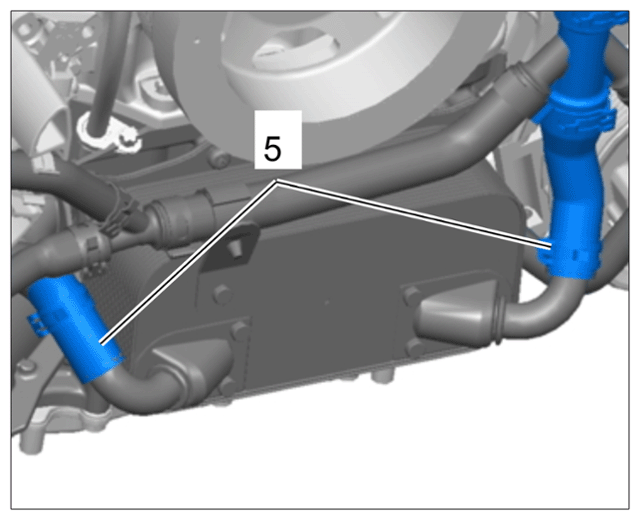

7.1 Disconnect coolant hoses -5- from the oil/water heat exchanger and collect emerging coolant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil/water heat exchanger

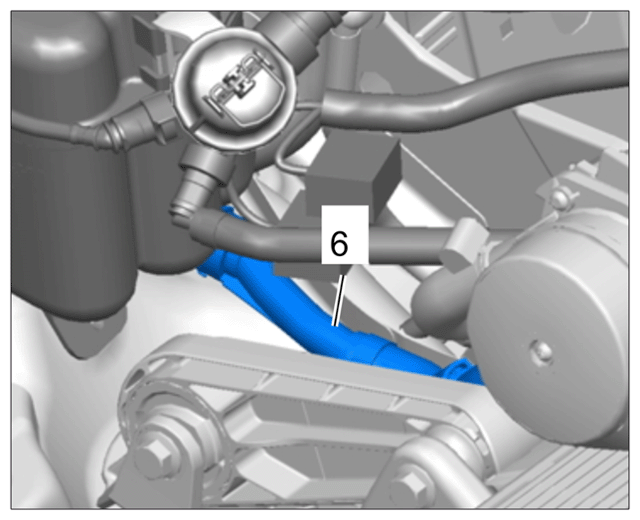

7.2 Disconnect the coolant hose -6- for the coolant reservoir and collect emerging coolant in a suitable container.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hose on coolant reservoir
