Removing Cooling-Air Flaps

WARNING: This page is about a different variant/trim than selected.
  1. Unscrew screws -6-  .
  2. Unscrew screws -2-  .
  3. Unscrew screws -3-  .
  4. Disconnect electric plug connection at the cooling-air flaps -1-  .
  5. Remove cooling-air flaps -1-  by pulling them up and press the bracket -4-  forward slightly.

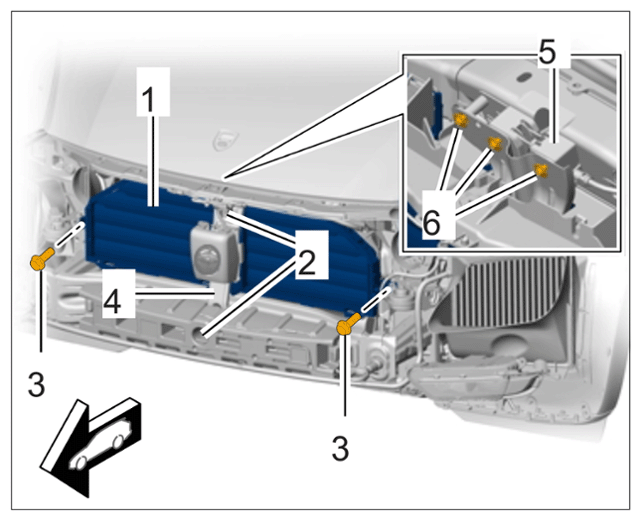

G16307651Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cooling-air flaps
