Removing (Front) Centre Air Guide
WARNING: This page is about a different variant/trim than selected.

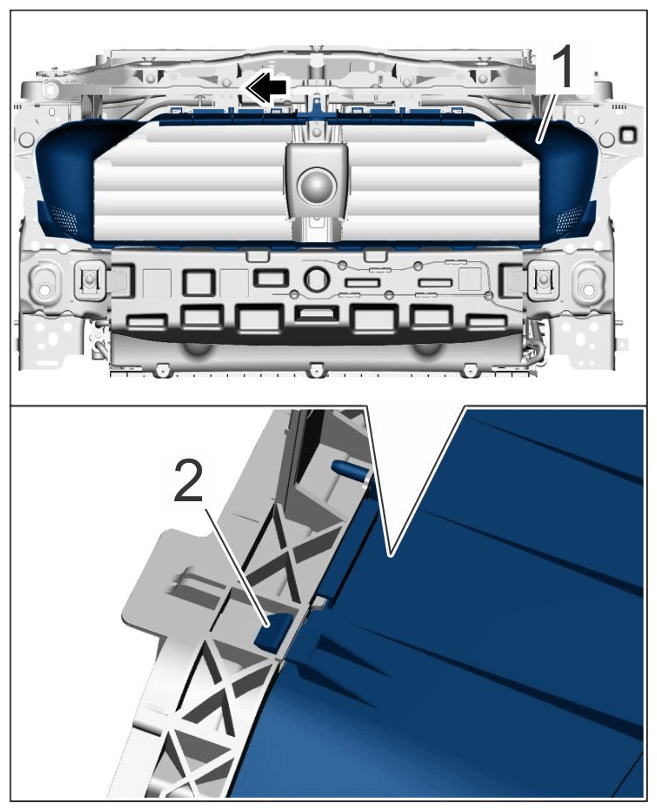

- Remove air guide -1-
.
- 1.1 Loosen locks -2-
.
- 1.2 Move air guide -1-
in direction of arrow and remove it by moving it forward.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Front centre air guide
