Technical Values
WARNING: This page is about a different variant/trim than selected.
TIGHTENING TORQUE SPECIFICATIONS
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

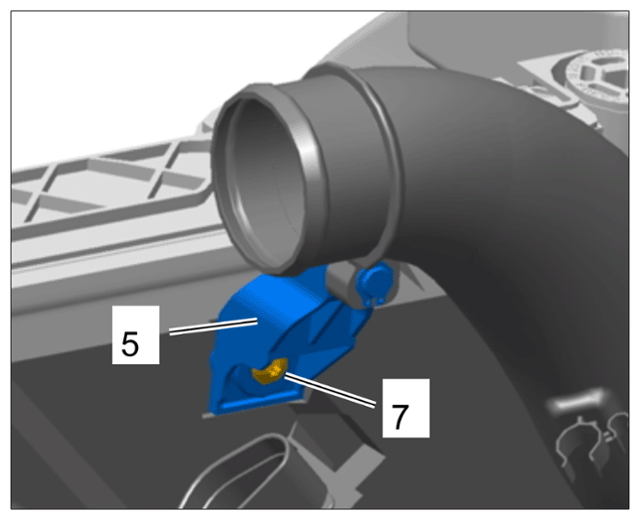

| Fastening screw securing holder to cooling fan housing | Item 7 | Tightening torque | 4.5 (3 ftlb.) Nm | ||
|
Tightening fastening screw on holder (shown on pressure pipe at the right) |
|||||

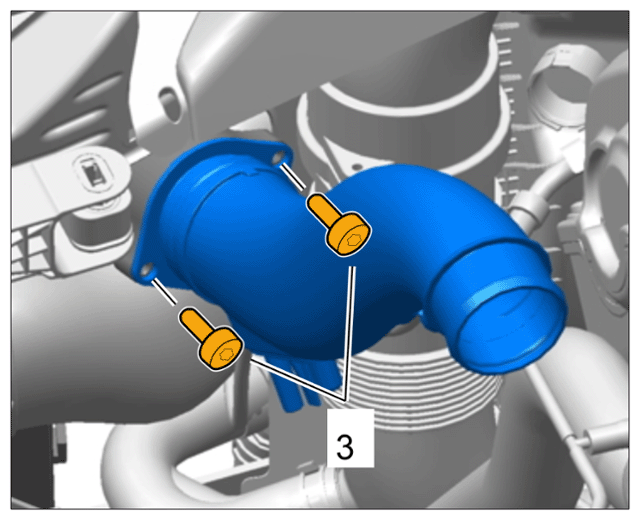

| Fastening screw for right pressure pipe on charge-air cooler | Item 3 | Tightening torque | 5.5 Nm | ||
|
Fastening screws on charge-air cooler |
|||||
