Removing Cooling Fan Housing (Radiator Frame)

WARNING: This page is about a different variant/trim than selected.
WARNING: Electrically moved components
  • Danger of limbs being trapped or severed

    → Switch off electric power to drive motor.

    → Make sure it does not switch on again.

    → Check that there is no electric charge.

  1. Unclip electric lines from the brackets.

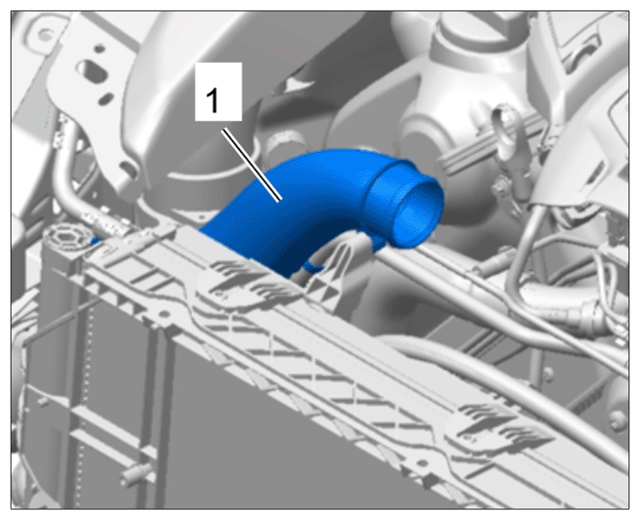

  2. Remove pressure pipe at the right -1-  .
    G16307628Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing pressure pipe

    1. 2.1 Release vent hose -2-  from the pressure pipe at the right -1-  and disconnect it.

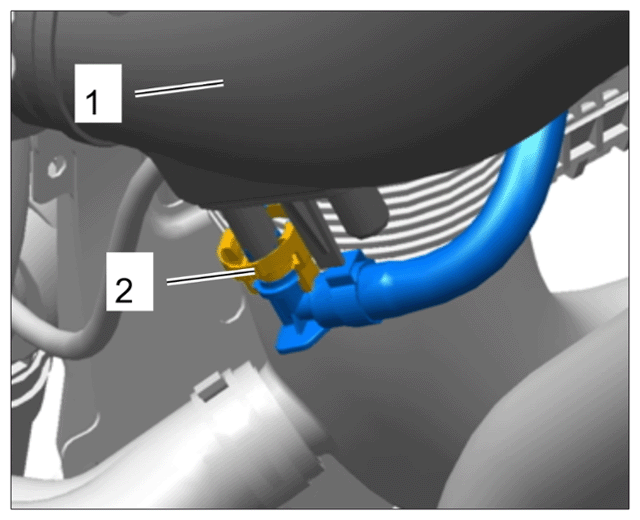

      G16307629Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Disconnecting vent hose

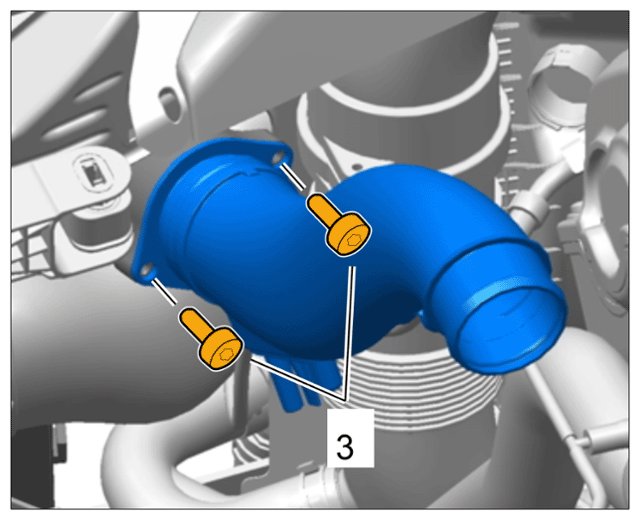

    2. 2.2 Unscrew two fastening screws -3-  on the pressure pipe at the right for the charge-air cooler.
      G16307630Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fastening screws on charge-air cooler

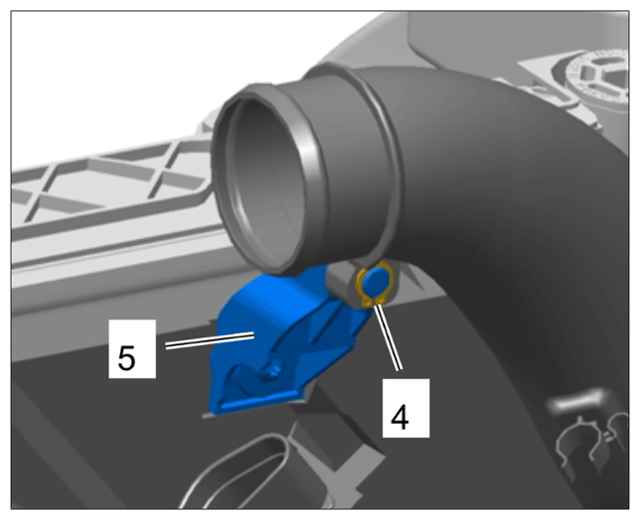

    3. 2.3 Unclip circlip -4-  from the holder for the pressure pipe at the right -5-  using a suitable tool.
      G16307631Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Unclipping circlip from holder

    4. 2.4 Pull pressure pipe at the right out of the bracket -5-  .
    5. 2.5 Pull pressure pipe at the right out of the charge-air cooler and remove it in an upward direction.

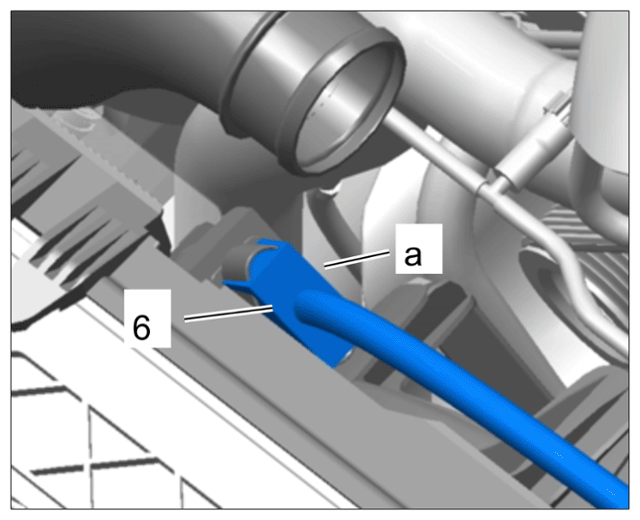

  3. Release and disconnect electric plug connection -6-  for fan on the cooling fan housing -a-  .
    G16307632Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off connector on cooling fan housing

  4. Remove holder for pressure pipe at the left.
    1. 4.1 Unclip circlip -4-  from the holder -5-  using a suitable tool.
      G16307633Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Unclipping circlip from holder

    2. 4.2 Unscrew fastening screw -7-  on the holder -5-  at the cooling fan housing.

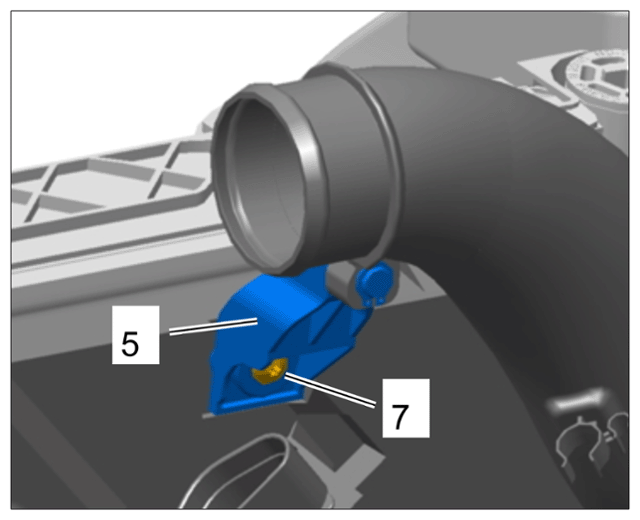

      G16307634Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Unscrewing fastening screw for holder

    3. 4.3 Remove holder -5-  .

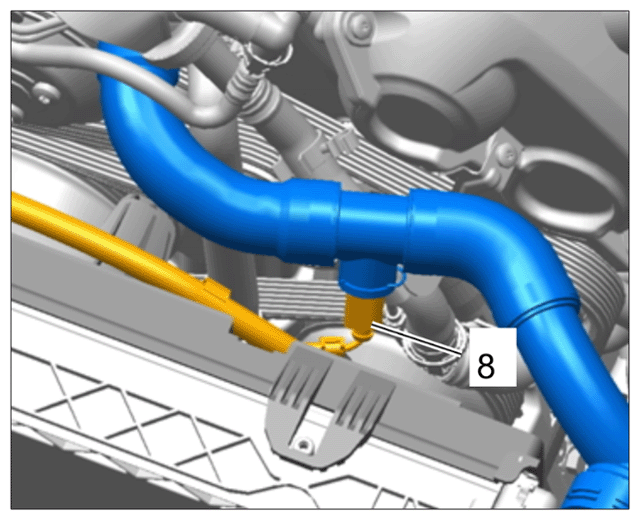

  5. Release and disconnect electric plug connection -8-  at the cooling water hose.
    G16307635Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off connector on cooling water hose

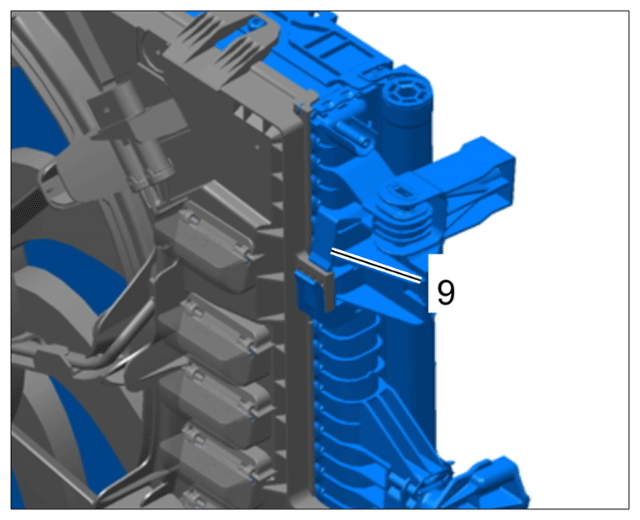

  6. Release locking springs -9-  at the left and right of the cooling fan housing.
    G16307636Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing locking springs

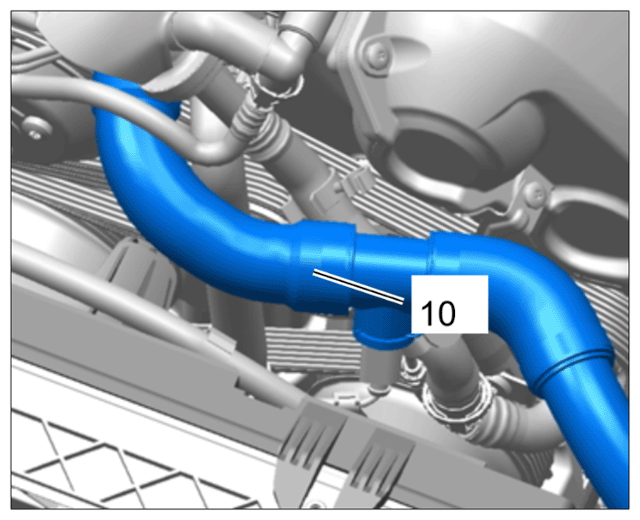

  7. Carefully press cooling water hose -10-  to one side.
    G16307637Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressing cooling water hose aside

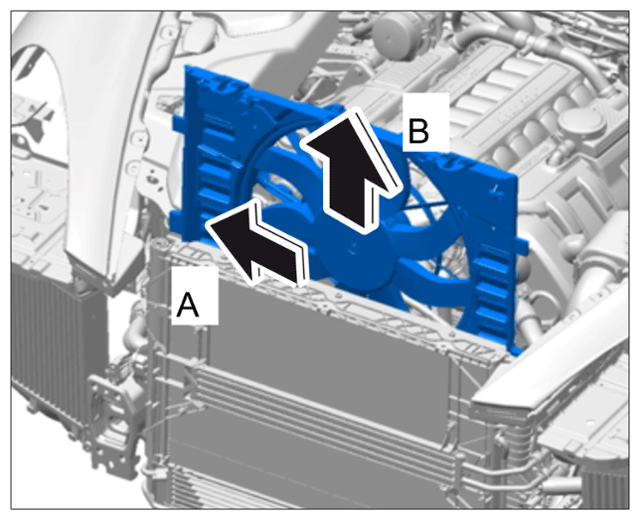

  8. Pull cooling fan housing out of the brackets at the side and at the bottom and swivel it to the right slightly -arrow A-  .
    G16307638Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling out cooling fan housing

  9. Carefully remove the cooling fan housing by pulling it up -arrow B-  .
