Installing Cooling Fan Housing (Radiator Frame)

WARNING: This page is about a different variant/trim than selected.
WARNING: Electrically moved components
  • Danger of limbs being trapped or severed

    → Switch off electric power to drive motor.

    → Make sure it does not switch on again.

    → Check that there is no electric charge.

  1. Carefully press the cooling water hose aside and slide the cooling fan housing carefully into the engine compartment along the radiator from top to bottom.
  2. Check that it is fitted correctly. To do this, check that the locking springs on the left and right have engaged properly and that the three fastening lugs on the underside have engaged in the plastic clips.
  3. Fit holder -5-  for pressure pipe at the left.
    1. 3.1 Tighten fastening screw -7-  on the holder -5-  at the cooling fan housing to > Tightening torque 4.5 (3 ftlb.) Nm  .

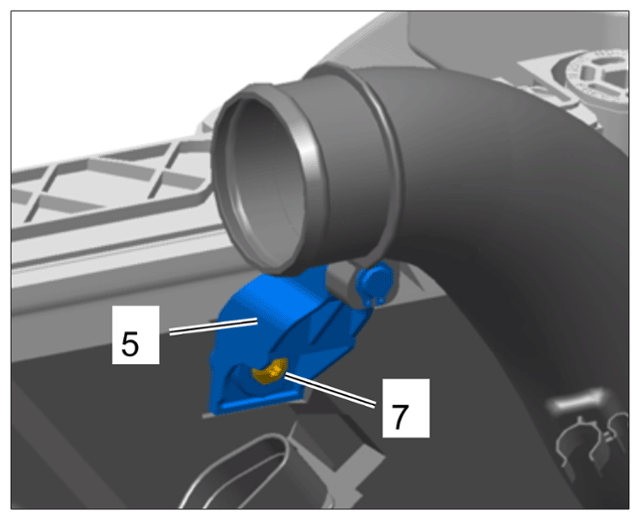

      G16307639Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Tightening fastening screw on holder (shown on pressure pipe at the right)

    2. 3.2 Position the pressure pipe on the holder -5-  and secure with a circlip -4-  .

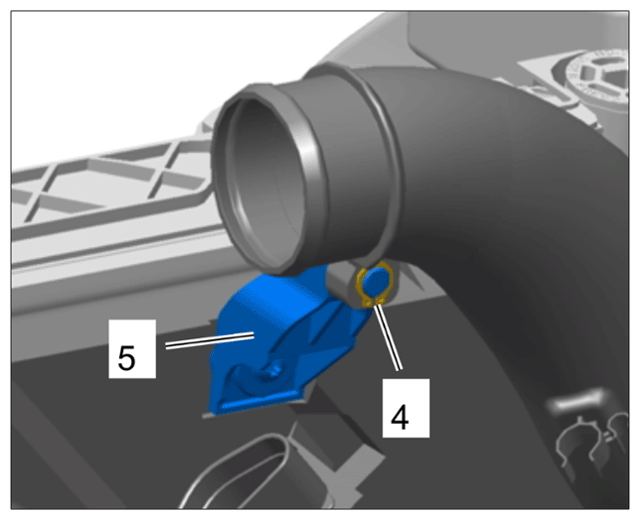

    G16307640Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clipping circlip into holder (shown on pressure pipe at the right)

  4. Plug in electric plug connection -8-  at the cooling water hose until it engages securely.

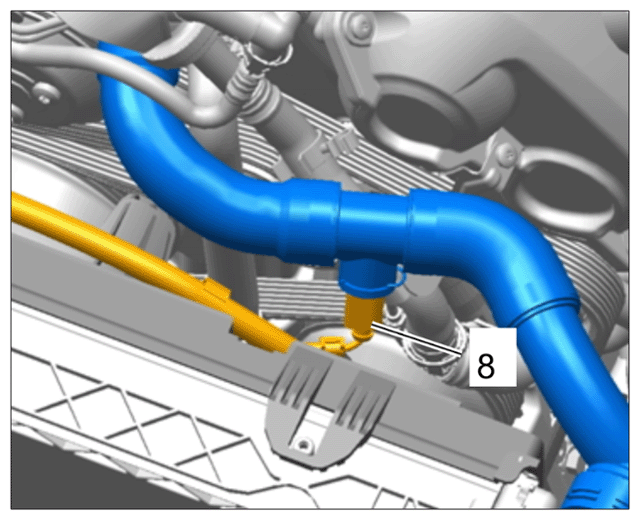

    G16307641Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plugging in connector on cooling water hose

  5. Plug in electric plug connection -6-  for fan on the cooling fan housing and lock it -a-  .

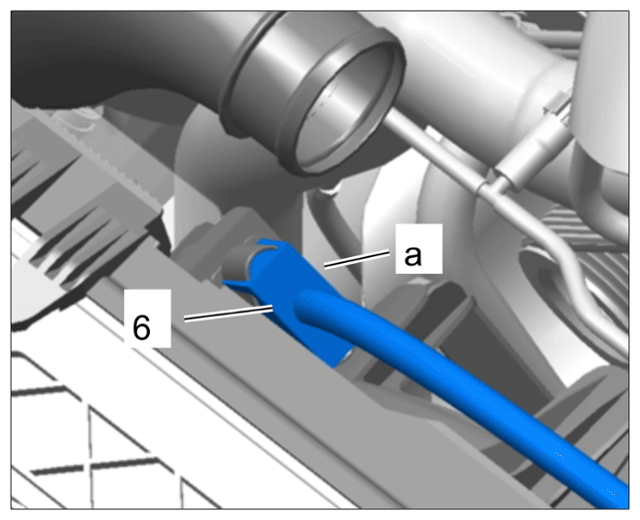

    G16307642Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plugging in connector on cooling fan housing

  6. Install pressure pipe at the right.
    1. 6.1 Insert pressure pipe at the right into the charge-air cooler.
    2. 6.2 Position pressure pipe at the right on the holder -5-  and secure with a circlip -4-  .
      G16307643Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Clipping circlip into holder

    3. 6.3 Tighten two fastening screws on the pressure pipe at the right for the charge-air cooler to > Tightening torque 5.5 Nm  .

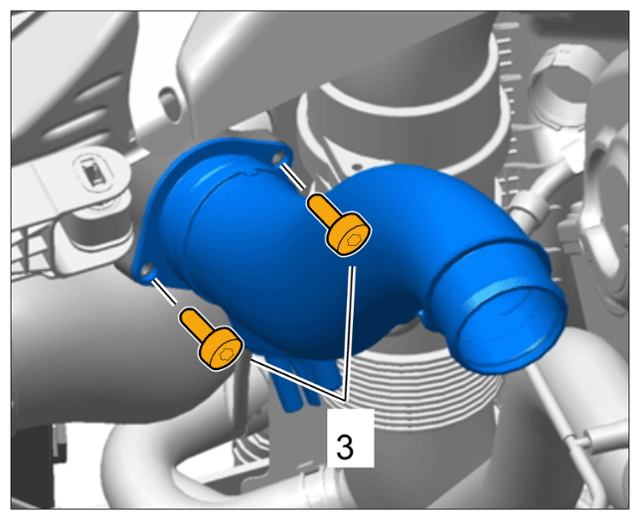

      G16307644Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fastening screws on charge-air cooler

    4. 6.4 Insert the vent hose -2-  into the pressure pipe -1-  at the right until it engages securely.

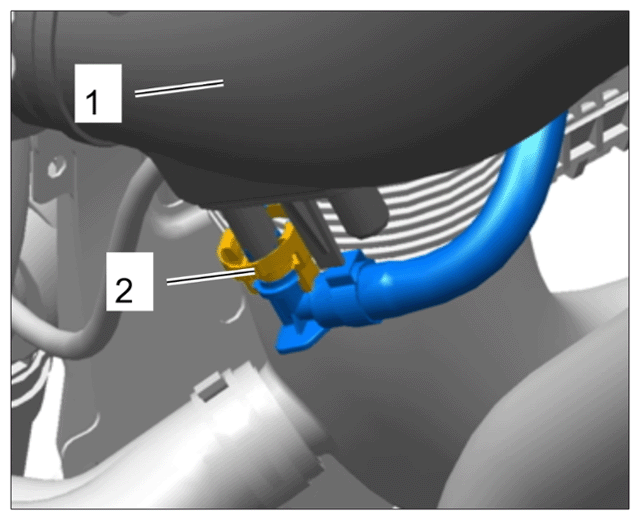

    G16307645Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Inserting vent hose

  7. Clip electric lines into the brackets.
