Removing Wheel

→ Use two assembly pins when removing and fitting the wheel.

→ Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

Information

• Use assembly aids (threaded pin for mounting wheel) in order to exclude any possibility of heavy contact of the wheel with the brake disc! The assembly aids (threaded pins for mounting wheel) should be obtained via the Porsche parts service (Part No. 999.571.074.30)!
• For vehicles with a Tyre Pressure Monitoring system (TPM), every new set of wheels or wheel change must be communicated to the control unit (even if the new wheels have the same specifications as the old ones). To do this, select >>Tyre pressure, Settings, Tyre type and Tyre size<< in the main menu on the instrument cluster and confirm your selection. The control unit then stores these values while the vehicle is driving (at more than 25 km/h (16 mph)). The current tire pressure is not available during this time  .
• The wheel mounting trolley can be used to make mounting easier  .

1. Removing wheel
   1. 1.1. Unscrew two wheel bolts that are not next to each other.
   2. 1.2. Replace the removed wheel bolts with mounting aids (threaded pins for mounting wheels).

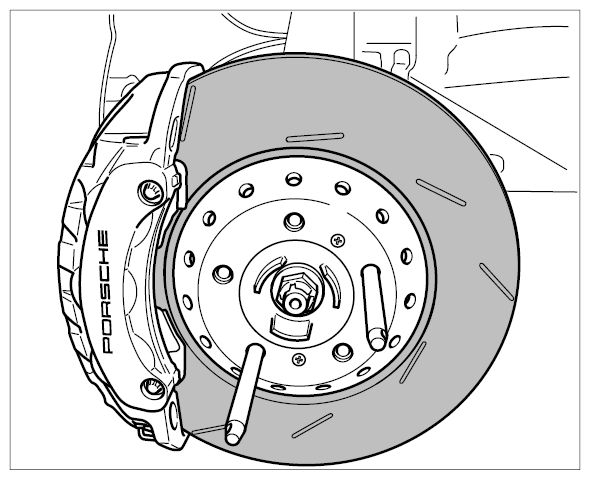

      Fig 1: Identifying Wheel Mounting Pins (Steel Brake Discs)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 1.3. Unscrew the remaining wheel bolts.
   4. 1.4. Carefully take off the wheel.
