Installing Control Unit For Electric Parking Brake

  1. Connect plug connection -2-  and lock it -1-  .

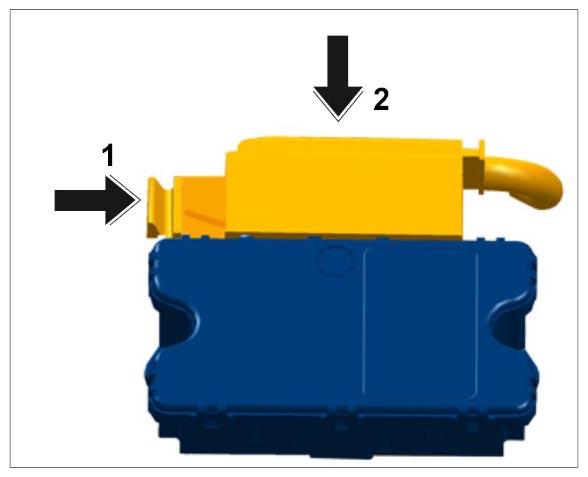

    Fig 1: Connecting Control Unit For Electric Parking Brake Plug Connection
    G09937472Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Place control unit for electric parking brake in installation position.
  3. Secure the control unit with the two fastening screws -1-  .

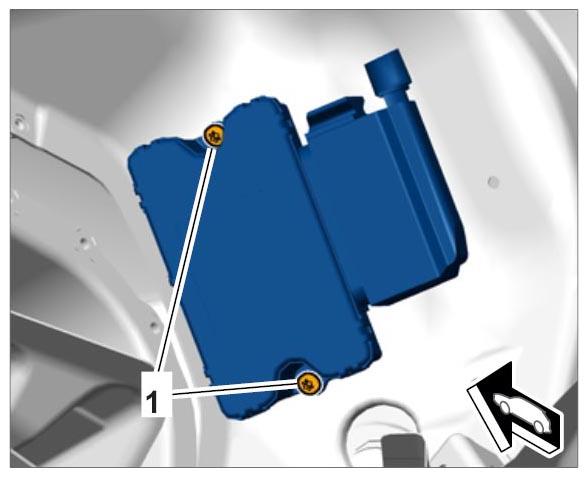

    Fig 2: Identifying Control Unit For Electric Parking Brake Screws
    G09937473Courtesy of PORSCHE CARS NORTH AMERICA, INC.
