Explanation Of Two-Part Brake Disc

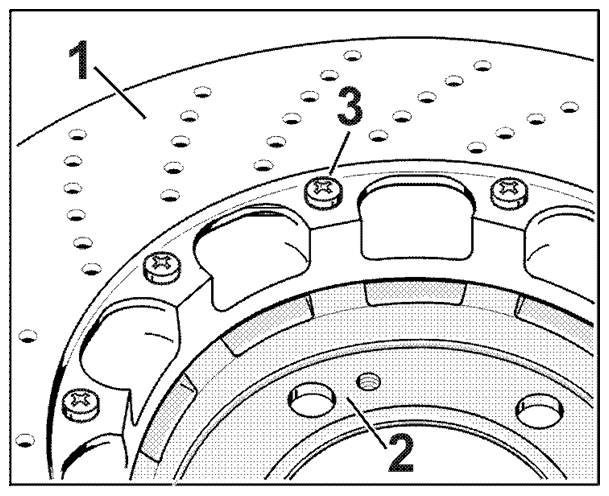

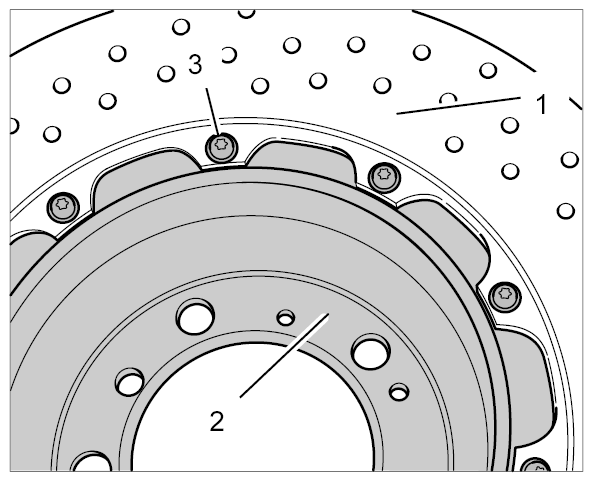

- The PCCB brake discs consist of two parts on the front and rear axles. The brake disc -1-
is screwed to the brake-disc chamber -2-
with screws (M6) -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Only the complete brake disc is available as a spare part (disc + brake-disc chamber)!
- Do not separate the brake-disc chamber -2-
and brake disc -1-
. In addition, the screws -3-
must not be turned and should not need to be turned. The screws are prevented from turning by compression in the bushing.
- It is essential that the Tightening Torque of the screws is not changed (do not turn the screws) as this can have a negative effect on the sound behavior.
| 1 |
Brake disc |
| 2 |
Brake-disc chamber |
| 3 |
Screw |
