Explanation Of Two-Part Brake Disc

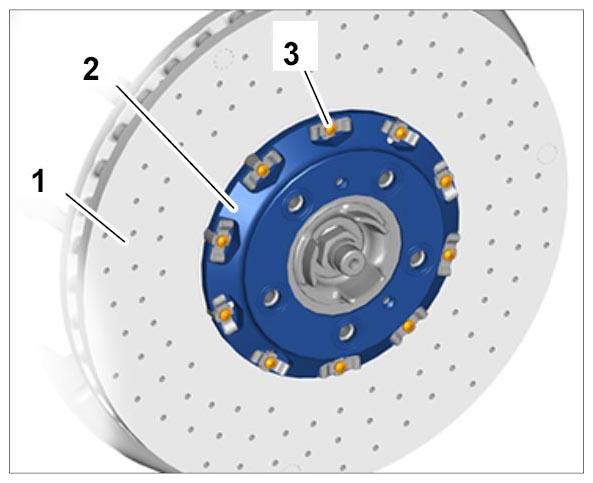

- The PCCB brake discs consist of two parts on the front and rear axles. The brake disc -1-
is screwed to the brake disc hub -2-
with 10 screws (M6) -3-
.
- Only the complete brake disc is available as a spare part (disc + brake disc hub)!
- Do not separate the brake disc hub -2-
and brake disc -1-
.
- Do not attempt to turn the screws -3-
. The screws are prevented from turning by compression in the bush.
- Changing the Tightening Torque of the screws -3-
will have negative effects on the noise produced.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
